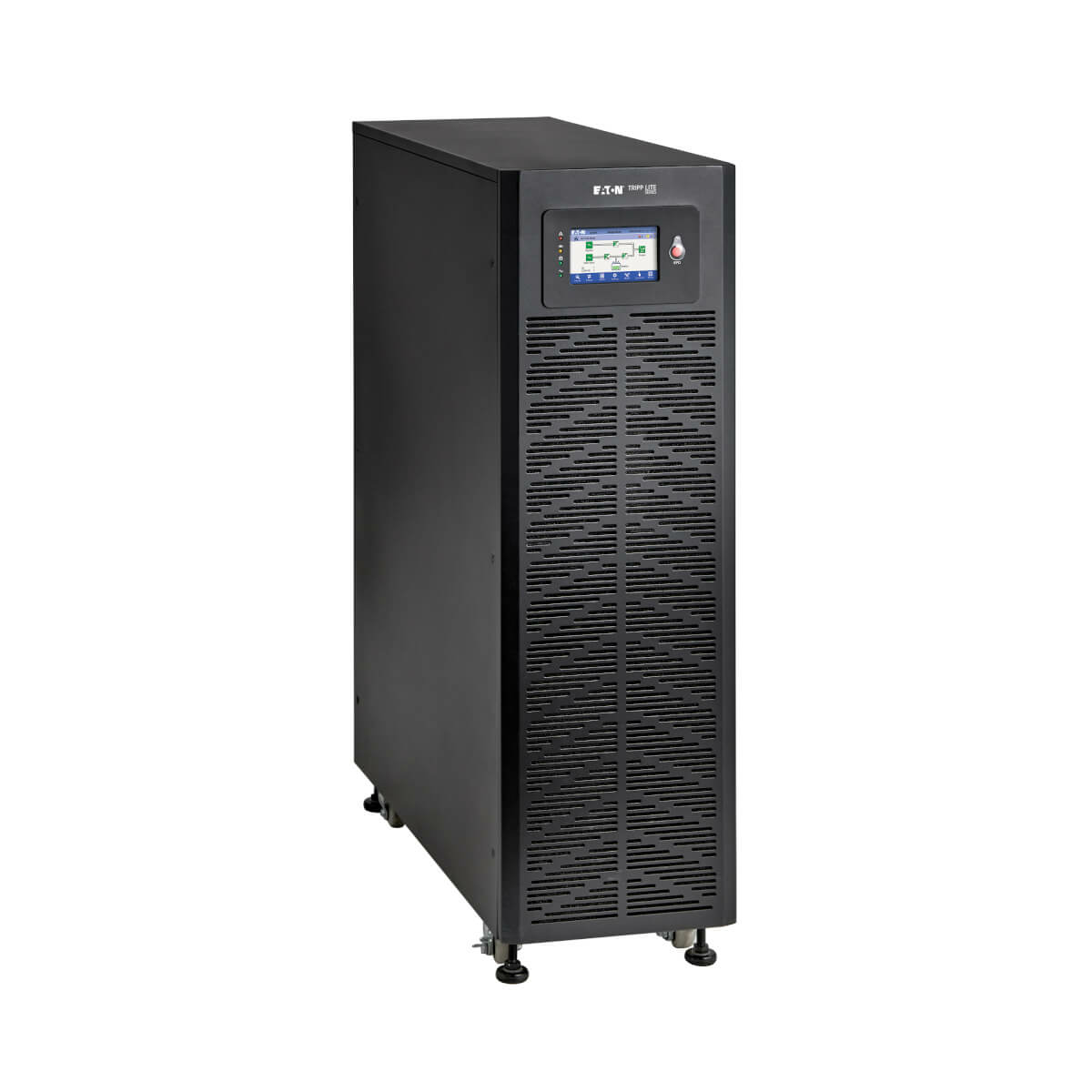

Tripp Lite S3M30K Tripp Lite S3M30K uninterruptible power supply (UPS) Double-conversion (Online) 30 kVA 30000 W

Availability :
Limited Availability
Mfr. Part# :
S3M30K
CAD 13,693.81
Quantity :

PRODUCT DETAILS:

Battery Backup and VFI Operation Protect Critical LoadsThe SmartOnline® S3M30K IGBT UPS supports the continuous availability of your most important operational and IT equipment loads through all power conditions, providing a compact backup power platform that’s easy to manage and inexpensive to operate. Sophisticated voltage- and frequency-independent (VFI) operation and advanced IGBT rectifier technology with DSP control deliver reliable output power quality. Providing up to 30kVA/kW of clean, continuous power, this 3-phase UPS system is ideally suited for critical applications in banking, education, healthcare, government and manufacturing sectors.Best-in-Class Footprint for Easy Integration into Your Network ApplicationThe UPS market’s smallest footprint for 3-phase 208V systems lets you install the S3M30K in spaces that would otherwise have required expensive retrofitting. By achieving its compact size without compromising runtime, reliability or functionality, the S3M30K is recommended for data centers, colocation facilities and edge computing environments that require high efficiency, high performance and clean, reliable power protection, while preserving as much space as possible for revenue-generating server racks.Efficient Operation and Design Reduces Cost of OwnershipENERGY STAR 2.0-certified technology provides high operational efficiency to save on utility and cooling costs, as well as protect the environment. This UPS achieves up to 94% efficiency in double-conversion mode and up to 98% in ECO mode, reducing your power and cooling costs. Unity output power factor (1.0) lets you support more equipment. A low THDi (

Power
Output power capacity30 kVA
Output power30000 W
Input operation voltage (min)120 V
Input operation voltage (max)220 V
Output operation voltage (min)120 V
Output operation voltage (max)220 V
Maximum current125 A
Efficiency93%
Emergency Power Off (EPO)Yes
Power factor1
Output voltage regulation±1%
Output frequency50/60 Hz
Input power factor0.99
Input current Total Harmonic Distortion (THD)3%
Crest factor3:1
Efficiency (ECO mode)98.5%
ECO modeYes
Input frequency50/60 Hz
Performance
UPS topologyDouble-conversion (Online)
Number of output phases3
Number of input phases3
Audible alarm modesLow battery alarm, Overload alarm
EMI/RFI noise filteringYes
WaveformPure sine
Power protection featuresOver voltage, Under voltage
Noise level68 dB
LED indicatorsYes
Audible alarm(s)Yes
Features
UPS topologyDouble-conversion (Online)
Output power capacity30 kVA
Country of originChina
Number of output phases3
Number of input phases3
Audible alarm modesLow battery alarm, Overload alarm
Output power30000 W
Input operation voltage (min)120 V
Input operation voltage (max)220 V
Output operation voltage (min)120 V
Output operation voltage (max)220 V
Maximum current125 A
Efficiency93%
EMI/RFI noise filteringYes
Emergency Power Off (EPO)Yes
WaveformPure sine
Power protection featuresOver voltage, Under voltage
Power factor1
Output voltage regulation±1%
Output frequency50/60 Hz
Input power factor0.99
Input current Total Harmonic Distortion (THD)3%
Crest factor3:1
Noise level68 dB
Audible alarm(s)Yes
Efficiency (ECO mode)98.5%
ECO modeYes
Input frequency50/60 Hz
Ports & interfaces
AC outlet typesHardwire
Power plugHardwire
USB portYes
Serial interfaceYes
Serial interface typeRS-232, RS-485
USB 2.0 ports quantity1
RS-232 ports1
Ethernet LAN (RJ-45) ports3
USB port typeUSB Type-B
Battery
Cold startYes
Design
Form factorTower
Country of originChina
Product colourBlack
Cooling typeActive
LED indicatorsYes
Built-in fanYes
Housing materialSteel
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 39370.1" (0 - 1000 m)
Technical details
Output frequency50/60 Hz
Sustainability complianceYes
Sustainability certificatesENERGY STAR
Compliance certificatesRoHS
Cooling
Cooling typeActive
Built-in fanYes
Weight & dimensions
Width11.8" (300 mm)
Depth31.5" (800.1 mm)
Height39.4" (1000 mm)
Weight211.9 lbs (96.1 kg)
Package width16.9" (430 mm)
Package depth36.6" (929.9 mm)
Package height47.1" (1195.1 mm)
Package weight258.2 lbs (117.1 kg)
Packaging data
Cables includedRS-232, USB cable
ManualYes
Package width16.9" (430 mm)
Package depth36.6" (929.9 mm)
Package height47.1" (1195.1 mm)
Package weight258.2 lbs (117.1 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width16.9" (430 mm)
Master (outer) case length36.6" (929.9 mm)
Master (outer) case height47.1" (1195.1 mm)
Master (outer) case gross weight258.2 lbs (117.1 kg)
Packaging content
Cables includedRS-232, USB cable
ManualYes
