PRODUCT DETAILS:
| Power | |
|---|---|
| Output power capacity | 30 kVA |
| Output power | 27000 W |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 415 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 415 V |
| Maximum current | 46.6 A |
| Emergency Power Off (EPO) | Yes |
| Output power factor | 0.9 |
| Output frequency | 50/60 Hz |
| Input power factor | 0.99 |
| Input current Total Harmonic Distortion (THD) | 3% |
| Crest factor | 3:1 |
| Input frequency | 50/60 Hz |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Number of output phases | 3 |
| Number of input phases | 3 |
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm |
| Waveform | Pure sine |
| Noise level | 60 dB |
| LED indicators | Yes |
| Audible alarm(s) | Yes |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Country of origin | China |
| Number of output phases | 3 |
| Number of input phases | 3 |
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm |
| Output power | 27000 W |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 415 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 415 V |
| Maximum current | 46.6 A |
| Emergency Power Off (EPO) | Yes |
| Waveform | Pure sine |
| Output power factor | 0.9 |
| Output frequency | 50/60 Hz |
| Input power factor | 0.99 |
| Input current Total Harmonic Distortion (THD) | 3% |
| Crest factor | 3:1 |
| Noise level | 60 dB |
| Audible alarm(s) | Yes |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| Emergency Power Off (EPO) connector | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Battery | |
| Cold start | Yes |
| Design | |
| Form factor | Tower |
| Country of origin | China |
| Product colour | Black |
| Certification | CE |
| Cooling type | Active |
| LED indicators | Yes |
| Built-in fan | Yes |
| Housing material | Steel |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 39370.1" (0 - 1000 m) |
| Technical details | |
| Output frequency | 50/60 Hz |
| Compliance certificates | RoHS |
| Cooling | |
| Cooling type | Active |
| Built-in fan | Yes |
| Weight & dimensions | |
| Width | 11.8" (300 mm) |
| Depth | 32.1" (814.8 mm) |
| Height | 39.4" (1000 mm) |
| Weight | 140 lbs (63.5 kg) |
| Package width | 16.9" (429.3 mm) |
| Package depth | 36.2" (920 mm) |
| Package height | 47.4" (1205 mm) |
| Package weight | 220 lbs (99.8 kg) |
| Packaging data | |
| Cables included | RS-232 |
| Manual | Yes |
| Package width | 16.9" (429.3 mm) |
| Package depth | 36.2" (920 mm) |
| Package height | 47.4" (1205 mm) |
| Package weight | 220 lbs (99.8 kg) |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case width | 16.9" (429.3 mm) |
| Master (outer) case length | 36.2" (920 mm) |
| Master (outer) case height | 47.4" (1205 mm) |
| Master (outer) case gross weight | 220 lbs (99.8 kg) |
| Certificates | |
| Certification | CE |
| Packaging content | |
| Cables included | RS-232 |
| Manual | Yes |

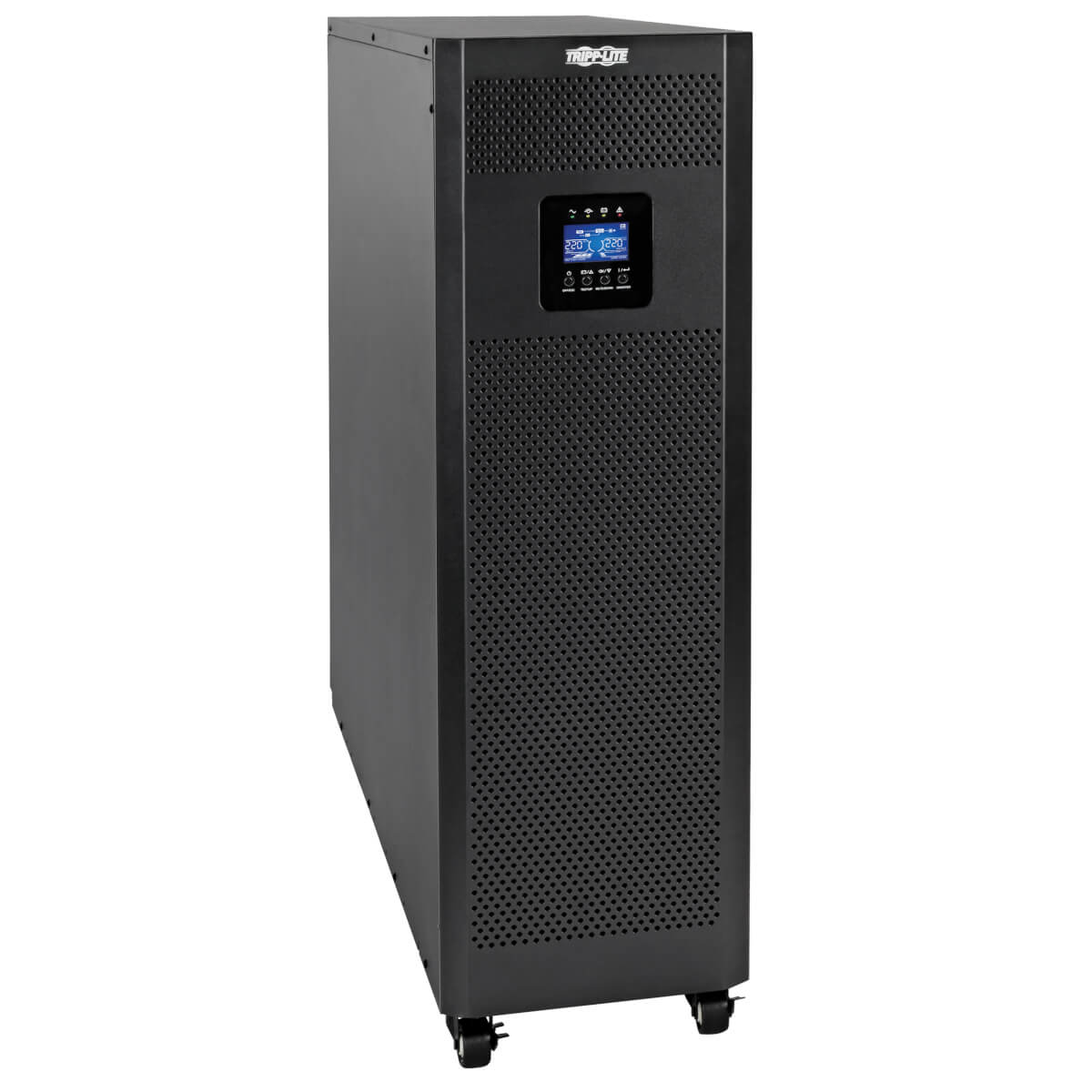

Tripp Lite S3M30KXD-NIB uninterruptible power supply (UPS) Double-conversion (Online) 30 kVA 27000 W
MFR: Tripp Lite
Part #: S3M30KXD-NIB
Qty: 1
