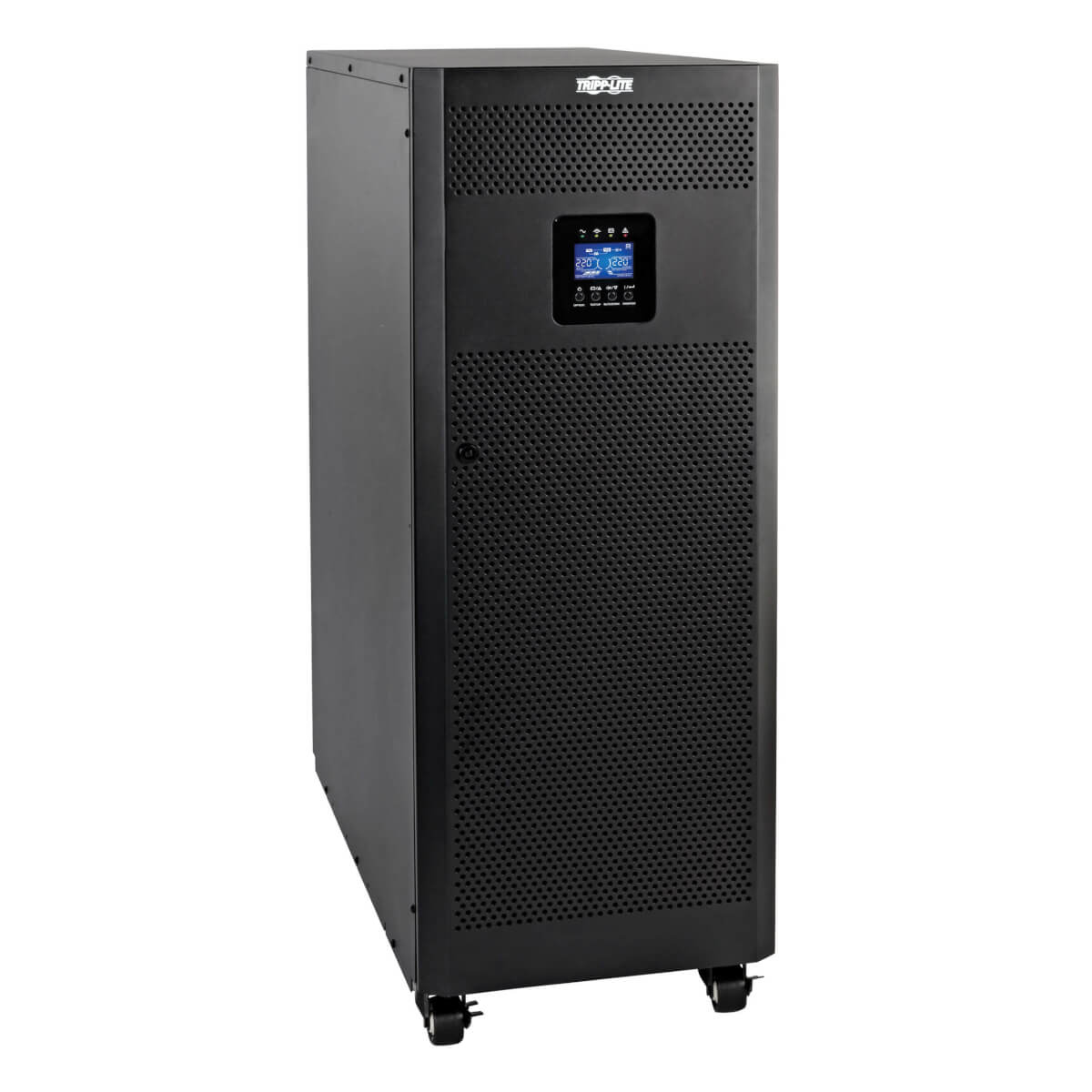

Tripp Lite S3M60KXD Tripp Lite S3M60KXD uninterruptible power supply (UPS) Double-conversion (Online) 60 kVA 54000 W

Availability :
Limited Availability
Mfr. Part# :
S3M60KXD
CAD 14,117.16
Quantity :

PRODUCT DETAILS:

Battery Backup and VFI Operation Protect Critical LoadsThe SmartOnline® S3M60KXD IGBT UPS supports the continuous availability of your most important loads through all power conditions, providing a compact backup power platform that’s easy to manage and inexpensive to operate. Sophisticated voltage and frequency independent (VFI) operation and advanced IGBT rectifier technology with DSP control deliver reliable output power quality. Providing up to 60kVA of clean, continuous power, this 3-phase UPS system is perfect for critical applications in IT, communications, corporate, commercial, retail, financial, security, transportation, emergency and edge infrastructure environments.Best-in-Class Footprint for Easy Integration into Your Network ApplicationThis on-line double-conversion UPS system has a very small footprint of just 0.28 square meters. It requires less valuable space in your facility, and you can install the UPS system in spaces that would previously have required expensive retrofitting.Efficient Operation and Design Reduces Cost of OwnershipThis UPS benefits from highly efficient transformer-free double-conversion technology that delivers operating cost savings. It achieves 94% efficiency in double-conversion mode and up to 98% in ECO mode, reducing your power and cooling costs. A low THDi (

Power
Output power capacity60 kVA
Output power54000 W
Input operation voltage (min)220 V
Input operation voltage (max)415 V
Output operation voltage (min)220 V
Output operation voltage (max)415 V
Maximum current93.2 A
Emergency Power Off (EPO)Yes
Output power factor0.9
Output frequency50/60 Hz
Input power factor0.99
Input current Total Harmonic Distortion (THD)3%
Crest factor3:1
Input frequency50/60 Hz
Performance
UPS topologyDouble-conversion (Online)
Number of output phases3
Number of input phases3
Audible alarm modesAlarm when on battery, Fault, Low battery alarm, Overload alarm
WaveformPure sine
Noise level70 dB
LED indicatorsYes
Audible alarm(s)Yes
Features
UPS topologyDouble-conversion (Online)
Output power capacity60 kVA
Country of originChina
Number of output phases3
Number of input phases3
Audible alarm modesAlarm when on battery, Fault, Low battery alarm, Overload alarm
Output power54000 W
Input operation voltage (min)220 V
Input operation voltage (max)415 V
Output operation voltage (min)220 V
Output operation voltage (max)415 V
Maximum current93.2 A
Emergency Power Off (EPO)Yes
WaveformPure sine
Output power factor0.9
Output frequency50/60 Hz
Input power factor0.99
Input current Total Harmonic Distortion (THD)3%
Crest factor3:1
Noise level70 dB
Audible alarm(s)Yes
Input frequency50/60 Hz
Ports & interfaces
Emergency Power Off (EPO) connectorYes
Serial interfaceYes
Serial interface typeRS-232
Battery
Cold startYes
Design
Form factorTower
Country of originChina
Product colourBlack
CertificationCE
Cooling typeActive
LED indicatorsYes
Built-in fanYes
Housing materialSteel
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 60 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 39370.1" (0 - 1000 m)
Technical details
Output frequency50/60 Hz
Compliance certificatesRoHS
Cooling
Cooling typeActive
Built-in fanYes
Weight & dimensions
Width14.2" (359.9 mm)
Depth31.1" (789.9 mm)
Height39.8" (1009.9 mm)
Weight238.1 lbs (108 kg)
Package width18.9" (479.8 mm)
Package depth35.8" (909.8 mm)
Package height47.2" (1199.9 mm)
Package weight285.9 lbs (129.7 kg)
Packaging data
Cables includedRS-232
ManualYes
Package width18.9" (479.8 mm)
Package depth35.8" (909.8 mm)
Package height47.2" (1199.9 mm)
Package weight285.9 lbs (129.7 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width18.9" (479.8 mm)
Master (outer) case length35.8" (909.8 mm)
Master (outer) case height47.2" (1199.9 mm)
Master (outer) case gross weight285.9 lbs (129.7 kg)
Certificates
CertificationCE
Packaging content
Cables includedRS-232
ManualYes
