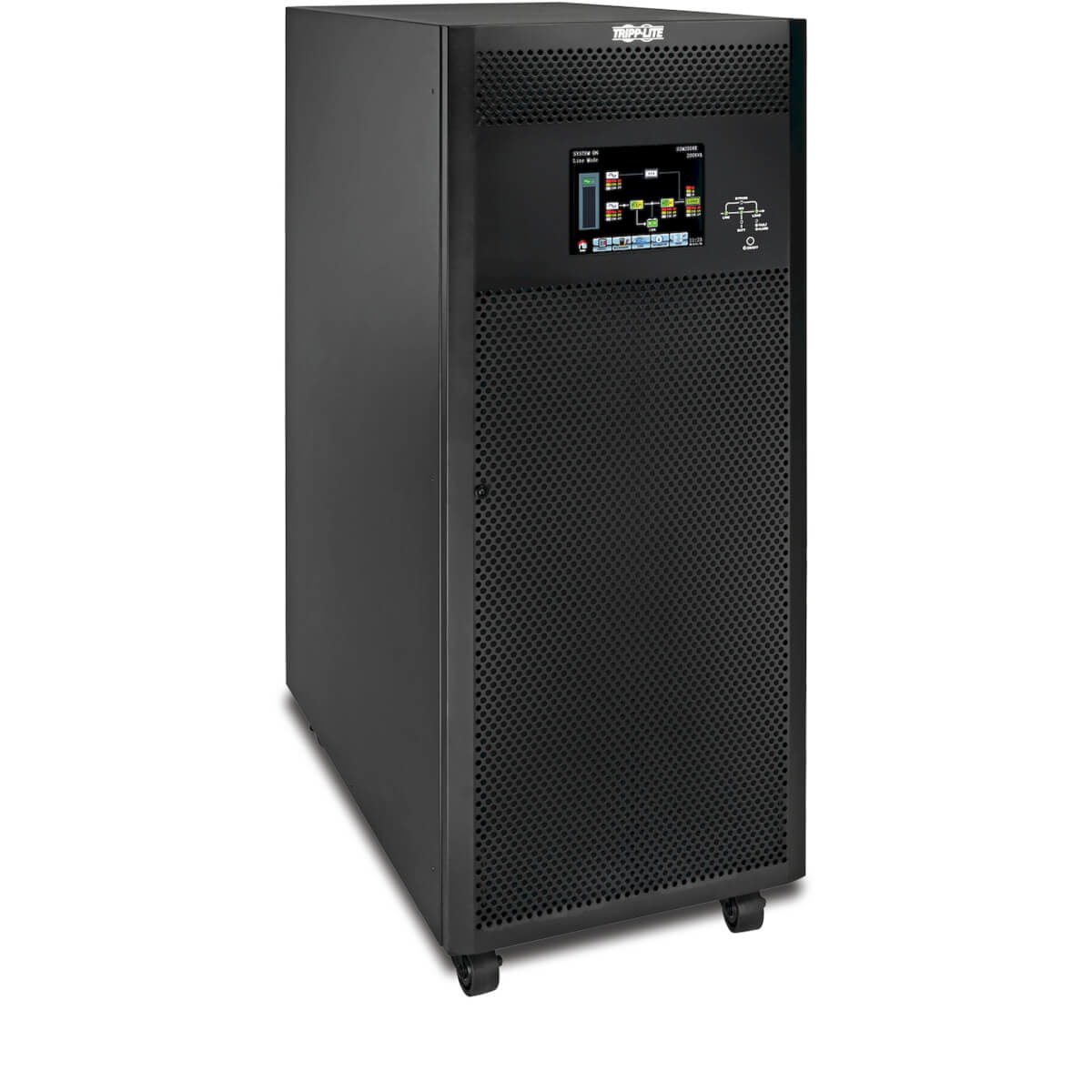

Tripp Lite S3M200KX Tripp Lite S3M200KX uninterruptible power supply (UPS) Double-conversion (Online) 200 kVA 180000 W

Availability :
Limited Availability
Mfr. Part# :
S3M200KX
CAD 44,222.11
Quantity :

PRODUCT DETAILS:

Battery Backup and VFI Operation Protect Critical LoadsThe SmartOnline® S3M200KX IGBT UPS supports the continuous availability of your most important loads through all power conditions, providing a compact backup power platform that’s easy to manage and inexpensive to operate. Sophisticated voltage and frequency independent (VFI) operation and advanced IGBT rectifier technology with DSP control deliver reliable output power quality. Providing up to 200kVA of clean, continuous power, this 3-phase UPS system is perfect for critical applications in IT, communications, corporate, commercial, retail, financial, security, transportation, emergency and light industrial environments.Best-in-Class Footprint for Easy Integration into Your Network ApplicationThis on-line double-conversion UPS system has a very small footprint of just 0.56 square meters. It requires less valuable space in your data center, and you can install the UPS system in spaces that would previously have required expensive retrofitting.Efficient Operation and Design Reduces Cost of OwnershipThis IGBT UPS benefits from highly efficient transformer-free double-conversion technology that delivers operating cost savings. It achieves 94% efficiency in double-conversion mode and up to 98% in ECO mode, reducing your power and cooling costs. A low THDi (

Power
Output power capacity200 kVA
Output power180000 W
Input operation voltage (min)220 V
Input operation voltage (max)415 V
Output operation voltage (min)220 V
Output operation voltage (max)415 V
Maximum current330 A
Power factor0.9
Output voltage regulation-1 - 1%
Input current Total Harmonic Distortion (THD)3%
Crest factor3:1
Input frequency50/60 Hz
Performance
UPS topologyDouble-conversion (Online)
Number of output phases3
Number of input phases3
LED indicatorsYes
Features
UPS topologyDouble-conversion (Online)
Output power capacity200 kVA
Country of originChina
Number of output phases3
Number of input phases3
Output power180000 W
Input operation voltage (min)220 V
Input operation voltage (max)415 V
Output operation voltage (min)220 V
Output operation voltage (max)415 V
Maximum current330 A
Power factor0.9
Output voltage regulation-1 - 1%
Input current Total Harmonic Distortion (THD)3%
Crest factor3:1
Input frequency50/60 Hz
Ports & interfaces
Serial interfaceYes
Design
Form factorTower
Country of originChina
Product colourBlack
SafetyEN 62040-2:2006
CertificationIEC 62040-1:2008+A1
LED indicatorsYes
Built-in fanYes
Housing materialSteel
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 60 °C
Operating relative humidity (H-H)5 - 95%
Operating altitude0 - 39370.1" (0 - 1000 m)
Technical details
Compliance certificatesRoHS
Cooling
Built-in fanYes
Weight & dimensions
Width22.3" (566.9 mm)
Depth39.2" (994.9 mm)
Height57.3" (1454.9 mm)
Weight756.2 lbs (343 kg)
Package width27.8" (705.1 mm)
Package depth44.4" (1127.5 mm)
Package height63.4" (1610.1 mm)
Package weight814.6 lbs (369.5 kg)
Packaging data
Package width27.8" (705.1 mm)
Package depth44.4" (1127.5 mm)
Package height63.4" (1610.1 mm)
Package weight814.6 lbs (369.5 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width27.8" (705.1 mm)
Master (outer) case length44.4" (1127.5 mm)
Master (outer) case height63.4" (1610.1 mm)
Master (outer) case gross weight814.6 lbs (369.5 kg)
Certificates
SafetyEN 62040-2:2006
CertificationIEC 62040-1:2008+A1
