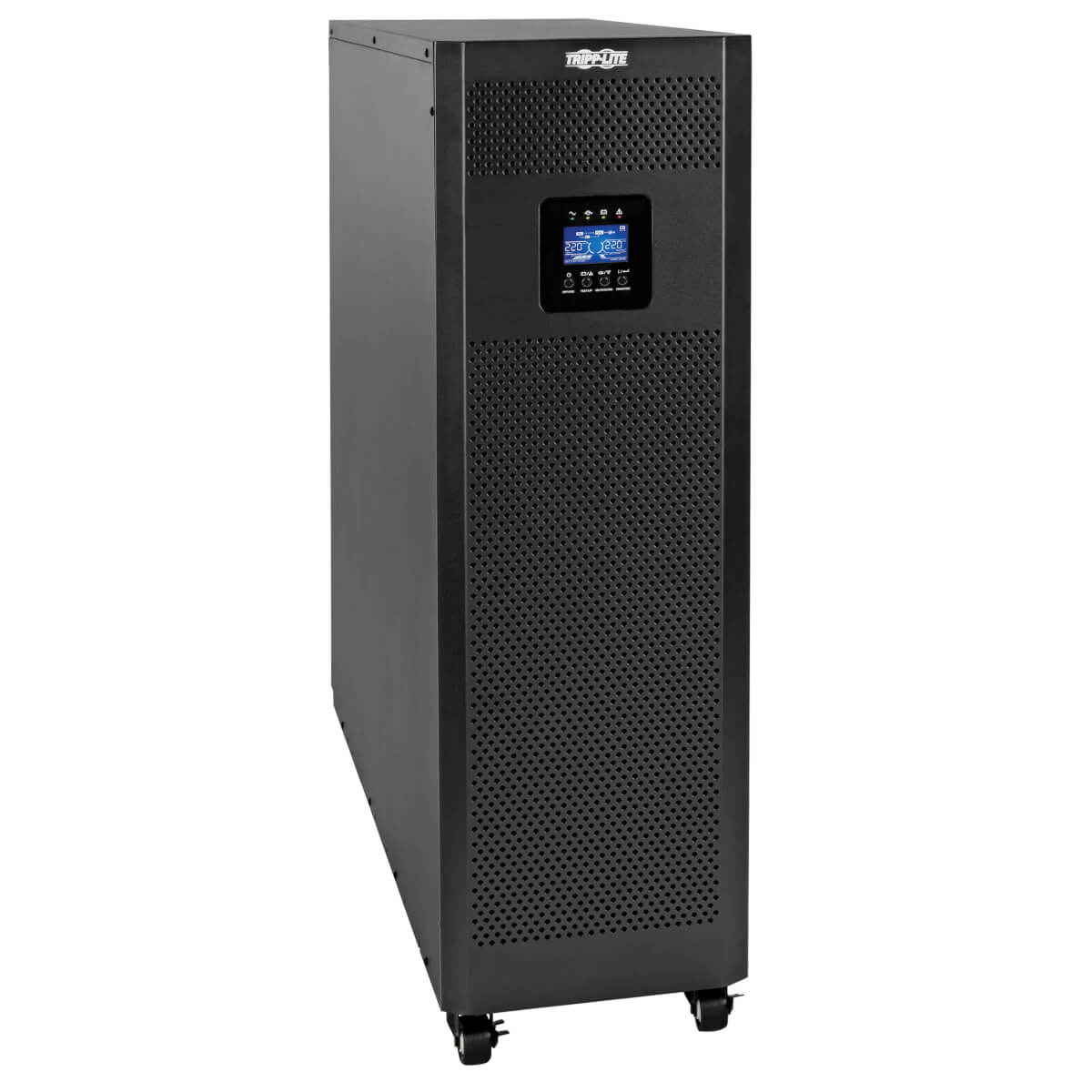

Tripp Lite S3M40KX Tripp Lite S3M40KX uninterruptible power supply (UPS) Double-conversion (Online) 40 kVA 36000 W

Availability :
Limited Availability
Mfr. Part# :
S3M40KX
CAD 14,218.62
Quantity :

PRODUCT DETAILS:

Battery Backup and VFI Operation Protect Critical LoadsThe SmartOnline® S3M40KX IGBT UPS supports the continuous availability of your most important loads through all power conditions, providing a compact backup power platform that’s easy to manage and inexpensive to operate. Sophisticated voltage and frequency independent (VFI) operation and advanced IGBT rectifier technology with DSP control deliver reliable output power quality. Providing up to 40kVA of clean, continuous power, this 3-phase UPS system is perfect for critical applications in IT, communications, corporate, commercial, retail, financial, security, transportation, emergency and light industrial environments.Best-in-Class Footprint for Easy Integration into Your Network ApplicationThis on-line double-conversion UPS system has a very small footprint of just 0.24 square meters. It requires less valuable space in your facility, and you can install the UPS system in spaces that would previously have required expensive retrofitting.Efficient Operation and Design Reduces Cost of OwnershipThis IGBT UPS benefits from highly efficient transformer-free double-conversion technology that delivers operating cost savings. It achieves 94% efficiency in double-conversion mode and up to 98% in ECO mode, reducing your power and cooling costs. A low THDi (

Power
Output power capacity40 kVA
Output power36000 W
Input operation voltage (min)220 V
Input operation voltage (max)415 V
Output operation voltage (min)220 V
Output operation voltage (max)415 V
Maximum current61 A
Power factor0.9
Output voltage regulation-1 - 1%
Input current Total Harmonic Distortion (THD)3%
Crest factor3:1
Input frequency50/60 Hz
Performance
UPS topologyDouble-conversion (Online)
Number of output phases3
Number of input phases3
Noise level60 dB
LED indicatorsYes
Features
UPS topologyDouble-conversion (Online)
Output power capacity40 kVA
Country of originChina
Number of output phases3
Number of input phases3
Output power36000 W
Input operation voltage (min)220 V
Input operation voltage (max)415 V
Output operation voltage (min)220 V
Output operation voltage (max)415 V
Maximum current61 A
Power factor0.9
Output voltage regulation-1 - 1%
Input current Total Harmonic Distortion (THD)3%
Crest factor3:1
Noise level60 dB
Input frequency50/60 Hz
Ports & interfaces
Serial interfaceYes
Design
Form factorTower
Country of originChina
Product colourBlack
SafetyIEC/EN 62040-2:2006
CertificationIEC/EN 62040-1:2008+A1
LED indicatorsYes
Built-in fanYes
Housing materialSteel
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 60 °C
Operating relative humidity (H-H)5 - 95%
Operating altitude0 - 39370.1" (0 - 1000 m)
Technical details
Compliance certificatesRoHS
Cooling
Built-in fanYes
Weight & dimensions
Width11.8" (300 mm)
Depth32.1" (814.8 mm)
Height39.4" (1000 mm)
Weight696 lbs (315.7 kg)
Package width16.9" (429.3 mm)
Package depth36.2" (920 mm)
Package height47.4" (1205 mm)
Package weight709 lbs (321.6 kg)
Packaging data
Package width16.9" (429.3 mm)
Package depth36.2" (920 mm)
Package height47.4" (1205 mm)
Package weight709 lbs (321.6 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width16.9" (429.3 mm)
Master (outer) case length36.2" (920 mm)
Master (outer) case height47.4" (1205 mm)
Master (outer) case gross weight709 lbs (321.6 kg)
Certificates
SafetyIEC/EN 62040-2:2006
CertificationIEC/EN 62040-1:2008+A1
