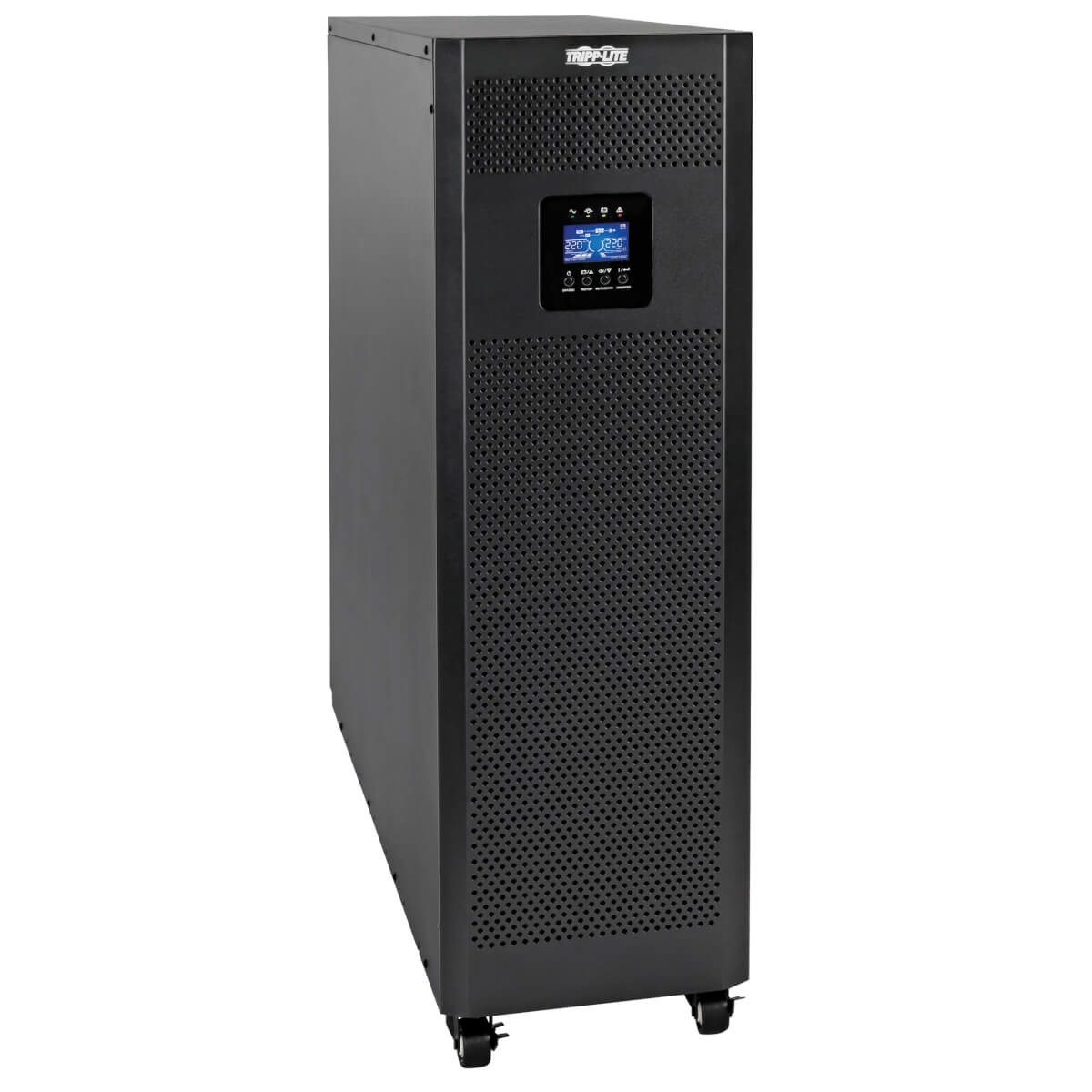

Tripp Lite S3M30KX-NIB Tripp Lite S3M30KX-NIB uninterruptible power supply (UPS) Double-conversion (Online) 30 kVA 27000 W

Availability :
Limited Availability
Mfr. Part# :
S3M30KX-NIB
CAD 7,504.52
Quantity :

PRODUCT DETAILS:

Battery Backup Option and VFI Operation Protect Critical LoadsThe SmartOnline® S3M30KX-NIB IGBT UPS supports the continuous availability of your most important loads through all power conditions, providing a compact backup power platform that’s easy to manage and inexpensive to operate. Sophisticated voltage and frequency independent (VFI) operation and advanced IGBT rectifier technology with DSP control deliver reliable output power quality. Providing up to 30kVA of clean, continuous power, this 3-phase UPS system is perfect for critical applications in IT, communications, corporate, commercial, retail, financial, security, transportation, emergency and light industrial environments.Best-in-Class Footprint for Easy Integration into Your Network ApplicationThis on-line double-conversion UPS system has a very small footprint of just 0.24 square meters. It requires less valuable space in your facility, and you can install the UPS system in spaces that would previously have required expensive retrofitting.Efficient Operation and Design Reduces Cost of OwnershipThis IGBT UPS benefits from highly efficient transformer-free double-conversion technology that delivers operating cost savings. It achieves 94% efficiency in double-conversion mode and up to 98% in ECO mode, reducing your power and cooling costs. A low THDi (

Power
Output power capacity30 kVA
Output power27000 W
Input operation voltage (min)220 V
Input operation voltage (max)415 V
Output operation voltage (min)220 V
Output operation voltage (max)415 V
Maximum current46.6 A
Power factor0.9
Output voltage regulation-1 - 1%
Crest factor3:1
Input frequency50/60 Hz
Performance
UPS topologyDouble-conversion (Online)
Number of output phases3
Number of input phases3
Noise level60 dB
LED indicatorsYes
Features
UPS topologyDouble-conversion (Online)
Output power capacity30 kVA
Country of originChina
Number of output phases3
Number of input phases3
Output power27000 W
Input operation voltage (min)220 V
Input operation voltage (max)415 V
Output operation voltage (min)220 V
Output operation voltage (max)415 V
Maximum current46.6 A
Power factor0.9
Output voltage regulation-1 - 1%
Crest factor3:1
Noise level60 dB
Input frequency50/60 Hz
Ports & interfaces
Emergency Power Off (EPO) connectorYes
Serial interfaceYes
Design
Form factorTower
Country of originChina
Product colourBlack
SafetyIEC/EN 62040-2:2006
CertificationCE, IEC/EN 62040-1:2008+A1
LED indicatorsYes
Built-in fanYes
Housing materialSteel
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)0 - 35 °C
Operating relative humidity (H-H)5 - 95%
Operating altitude0 - 39370.1" (0 - 1000 m)
Technical details
Compliance certificatesRoHS
Cooling
Built-in fanYes
Weight & dimensions
Width11.8" (300 mm)
Depth32.1" (814.8 mm)
Height39.4" (1000 mm)
Weight140 lbs (63.5 kg)
Package width16.9" (429.3 mm)
Package depth36.2" (920 mm)
Package height47.4" (1205 mm)
Package weight220 lbs (99.8 kg)
Packaging data
Cables includedSerial
Package width16.9" (429.3 mm)
Package depth36.2" (920 mm)
Package height47.4" (1205 mm)
Package weight220 lbs (99.8 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width16.9" (429.3 mm)
Master (outer) case length36.2" (920 mm)
Master (outer) case height47.4" (1205 mm)
Master (outer) case gross weight220 lbs (99.8 kg)
Certificates
SafetyIEC/EN 62040-2:2006
CertificationCE, IEC/EN 62040-1:2008+A1
Packaging content
Cables includedSerial
