S3MT-30KWR480V - Tripp Lite - Available in Canada
S3MT-30KWR480V - Tripp Lite

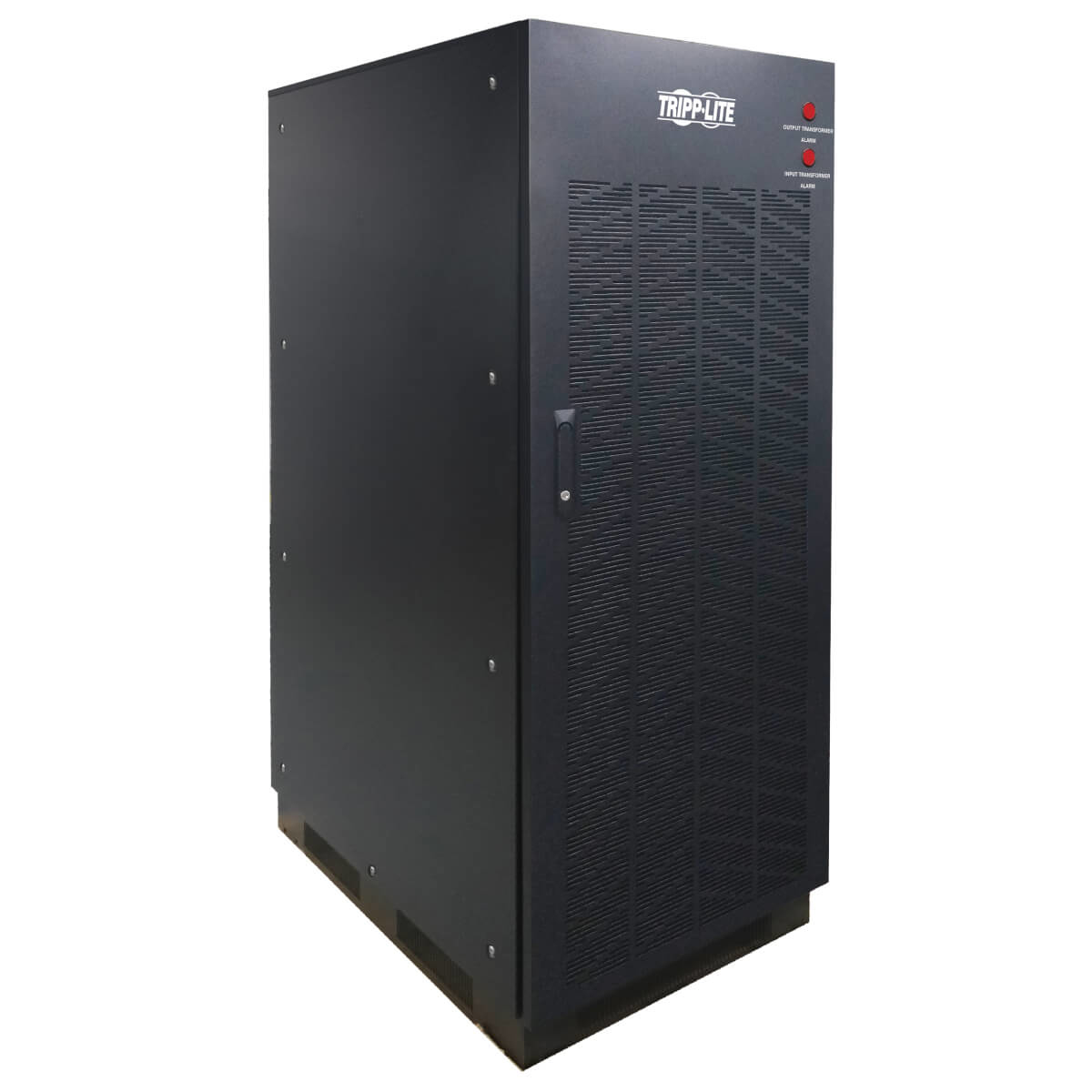

Tripp Lite S3MT-30KWR480V isolation transformer

Tripp Lite
Availability :
Sourced on Demand
Mfr. Part# :
S3MT-30KWR480V
CAD 10,817.52
Get a Quote Get a Quote

PRODUCT DETAILS:

Get Complete Step-Down/Step-Up and Isolation ProtectionTripp Lite’s S3MT-30KWR480V includes two transformers in a single cabinet: a 480V (Delta) to 208V (Wye) input isolation step-down transformer and a 208V (Wye) to 480V (Wye) output auto step-up transformer. It isolates the UPS and connected components from line surges and spikes caused by utility power disruptions that can damage equipment or corrupt data. The dual transformers are ideal for 4-wire (3Ph+N+PE) loads in government, manufacturing, healthcare and corporate settings with 480V electrical mains and 480V IT loads.Performs with High Efficiency up to 97.5%Not only is the S3MT-30KWR480V wrap-around transformer very efficient, with up to 97.5 percent efficiency, but it is also very quiet with a noise profile less than 65 dBA. Built-in circuit breakers on both transformers help prevent dangerous power overloads. Four ball-bearing cooling fans help prevent overheating. An overheat-sensing relay and switch combine with red alarm indicators to provide over-temperature warning and overheating protection.Small Footprint for Quick Installation in a Compact SpaceThe compact footprint enables installation of the S3MT-30KWR480V with minimal space. The rugged stainless steel housing ships ready for immediate tower installation with a compatible 20–30kVA/kW Tripp Lite S3M-Series 3-phase UPS system.

Features
AC inlet typeHardwire
AC outlet typesHardwire
AC input voltage480 V
AC input frequency50 - 60 Hz
Load capacity30000 VA
Housing colourBlack
AC output voltage120 - 208 V
Number of input phases3
Number of output phases3
LED indicatorsYes
Noise level65 dB
Form factorTower
Efficiency96.5%
Number of fans4 fan(s)
Cooling typeFan
Fan diameter4.72" (12 cm)
Heat dissipation9829 BTU/h
Input current (output transformer)87 A
Input current (input transformer)51 A
Output current (output transformer)36 A
Output current (input transformer)113 A
Inrush current (output transformer)1010 A
Inrush current (input transformer)450 A
Efficiency (@half load)97.5%
Weight & dimensions
Width23.6" (599.4 mm)
Depth33.5" (850.9 mm)
Height63" (1600.2 mm)
Weight961 lbs (435.9 kg)
Package width27.6" (701 mm)
Package depth37.8" (960.1 mm)
Package height70.9" (1800.9 mm)
Package weight1058 lbs (479.9 kg)
Technical details
Products per master (outer) case1 pc(s)
Master (outer) case width27.6" (701 mm)
Master (outer) case gross weight1058 lbs (479.9 kg)
Master (outer) case length37.8" (960.1 mm)
Master (outer) case height70.9" (1800.9 mm)
Packaging content
ManualYes
Screws includedYes
Number of screws24
Number of bottom panels4
Bottom panel(s) includedYes
Logistics data
Country of originChina
Products per master (outer) case1 pc(s)
Master (outer) case width27.6" (701 mm)
Master (outer) case gross weight1058 lbs (479.9 kg)
Master (outer) case length37.8" (960.1 mm)
Master (outer) case height70.9" (1800.9 mm)
