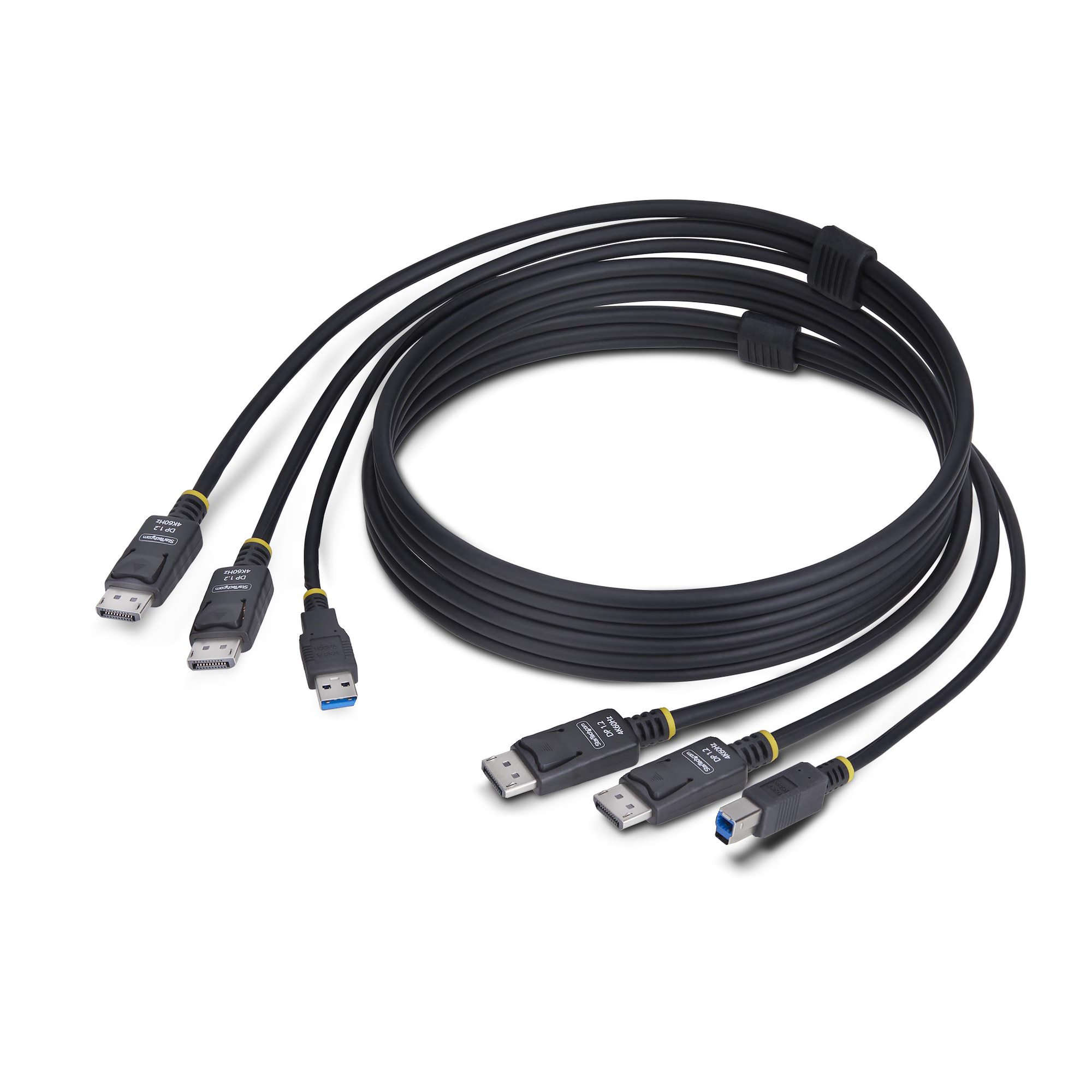

Combine two DisplayPort 4K 60Hz and one USB 5Gbps connections into a single cable for connecting a computer to a KVM SwitchKVM cable provides a reliable connection between a computer and a dual-monitor DisplayPort KVM switch with USB 5Gbps support.Manage Cables with EaseSimplify cable management by combining multiple connections into a single bundle. This minimizes the number of individual cables that need to be handled, making installation faster and more efficient. They are perfect for environments where KVMs are essential, such as data centers, server rooms, edge networking, and remote management setups, helping to reduce cable clutter and maintain an organized workspace.Works with Any KVM SwitchThis KVM cable works with any operating system, including Windows, macOS, ChromeOS, and Linux. It also supports all major hardware platforms, such as Intel, AMD, and Apple Silicon.KVM combo cable is DisplayPort 1.2 compliant, supporting resolutions up to 4K at 60Hz, HDR10, and DisplayPort audio for high-quality audio/video experience. The USB 3.0 Type-A to Type-B connector provides fast data transfer speeds of up to 5Gbps.The StarTech.com Advantage
Performance
Cable length
70.9" (1.8 m)
Video port type
DisplayPort
Mouse port type
USB
Maximum video resolution
3840 x 2160 pixels
Keyboard port type
USB
Connector contacts plating
Nickel
Connector 2
2 x DisplayPort + USB 3.2 Type-B
Connector 1
2 x DisplayPort + USB 3.2 Type-A
Product colour
Black
Cable jacket material
Thermoplastic elastomer (TPE)
Connector 1 gender
Male
Connector 2 gender
Male
Certificates
Compliance certificates
RoHS
Packaging data
Weight
11.3 oz (320 g)
Package width
11.4" (290 mm)
Package weight
11.3 oz (320 g)
Package height
1.22" (31 mm)
Package depth
5.71" (145 mm)
Ports & interfaces
Video port type
DisplayPort
Mouse port type
USB
Keyboard port type
USB
Connector 2
2 x DisplayPort + USB 3.2 Type-B
Connector 1
2 x DisplayPort + USB 3.2 Type-A
Features
Cable length
70.9" (1.8 m)
Weight
11.3 oz (320 g)
Maximum video resolution
3840 x 2160 pixels
Connector contacts plating
Nickel
Product colour
Black
Cable jacket material
Thermoplastic elastomer (TPE)
Technical details
Compliance certificates
RoHS
Weight & dimensions
Cable length
70.9" (1.8 m)
Weight
11.3 oz (320 g)
Other features
Package depth
5.71" (145 mm)
Logistics data
Master (outer) case width
15.7" (400 mm)
Master (outer) case length
11.8" (300 mm)
Master (outer) case height
11.8" (300 mm)
Products per master (outer) case
40 pc(s)
Get a Quote
StarTech.com DDU1226-KVM-CABLE KVM cable Black 70.9" (1.8 m)
