Display |
---|
Display diagonal | 65" |
Working area | 56.2 x 31.6" (1428.5 x 803.5 mm) |
Contrast ratio (typical) | 1200:1 |
Touchscreen | Yes |
Number of simultaneous touchpoints | 20 |
Panel type | ADS |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Response time | 8 ms |
Pixel pitch | 14.6 x 14.6" (372 x 372 mm) |
Display brightness | 410 cd/m² |
Display resolution | 3840 x 2160 pixels |
Display number of colours | 1.07 billion colors |
HD type | 4K Ultra HD |
LED backlighting type | Direct-LED |
Contrast ratio (dynamic) | 4000:1 |
Handles quantity | 2 |
Anti-glare screen | Yes |
Features |
---|
Display diagonal | 65" |
Working area | 56.2 x 31.6" (1428.5 x 803.5 mm) |
Contrast ratio (typical) | 1200:1 |
Touchscreen | Yes |
Number of simultaneous touchpoints | 20 |
Panel type | ADS |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Response time | 8 ms |
Pixel pitch | 14.6 x 14.6" (372 x 372 mm) |
Display brightness | 410 cd/m² |
Display resolution | 3840 x 2160 pixels |
Display number of colours | 1.07 billion colors |
HD type | 4K Ultra HD |
LED backlighting type | Direct-LED |
Contrast ratio (dynamic) | 4000:1 |
Handles quantity | 2 |
Anti-glare screen | Yes |
Product colour | Black |
Country of origin | China |
Computer system |
---|
Maximum internal memory | 32 GB |
RAM capacity | 4 GB |
RAM type | DDR3 |
Processor architecture | ARM Cortex-A55 |
Audio |
---|
Built-in speaker(s) | Yes |
Number of built-in speakers | 2 |
Speaker power | 32 W |
Projector |
---|
Aspect ratio | 16:9 |
Built-in projector | No |
Contrast ratio (typical) | 1200:1 |
Network |
---|
Bluetooth | Yes |
Wi-Fi | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN | Yes |
Ports & interfaces |
---|
USB 2.0 ports quantity | 1 |
HDMI ports quantity | 3 |
Ethernet LAN (RJ-45) ports | 1 |
Headphone connectivity | 3.5 mm |
RS-232 ports | 1 |
USB Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A Touch ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
VGA (D-Sub) ports quantity | 1 |
Audio output | 1 |
OPS slot | 80 |
Bluetooth | Yes |
Wi-Fi | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN | Yes |
Ergonomics |
---|

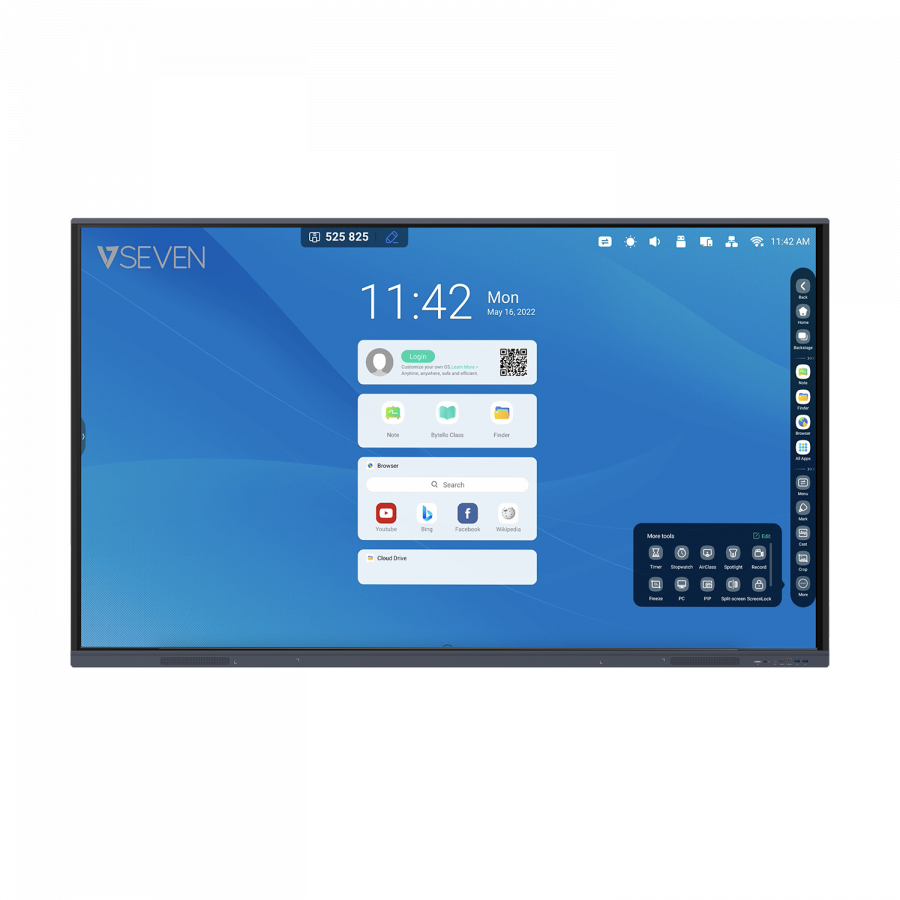

Product type | Interactive whiteboard |
Wall mountable | Yes |
Product colour | Black |
Certification | CE,Energy Star,FCC,RoHS,TUV,UL,WEEE |
VESA mounting | Yes |
Panel mounting interface | 600 x 400 mm |
USB cable length | 70.9" (1.8 m) |
Power |
---|
Power consumption (typical) | 200 W |
Power consumption (standby) | 0.5 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Power consumption (max) | 360 W |
System requirements |
---|
Mac compatibility | Yes |
Windows operating systems supported | Yes |
Mac operating systems supported | Yes |
Mobile operating systems supported | Android 11.0 |
Operational conditions |
---|
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -20 - 60 °C |
Storage relative humidity (H-H) | 10 - 90% |
Performance |
---|
Remote control included | Yes |
Technical details |
---|
Working area | 56.2 x 31.6" (1428.5 x 803.5 mm) |
Touchscreen | Yes |
Panel type | ADS |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Response time | 8 ms |
Pixel pitch | 14.6 x 14.6" (372 x 372 mm) |
Country of origin | China |
Remote control included | Yes |
Weight & dimensions |
---|
Width | 58.6" (1488.4 mm) |
Depth | 3.43" (87.2 mm) |
Height | 35.3" (896.6 mm) |
Weight | 77.2 lbs (35 kg) |
Packaging data |
---|
Package width | 64.1" (1628 mm) |
Package depth | 8.19" (208 mm) |
Package height | 39.6" (1005 mm) |
Package weight | 98.5 lbs (44.7 kg) |
Number of packages | 1 |
Stylus included | Yes |
Packaging content |
---|
Cables included | AC, HDMI, USB Type-C |
Stylus included | Yes |
Quick start guide | Yes |
Mounting kit | Yes |
Remote control included | Yes |
Batteries included | Yes |
USB cable length | 70.9" (1.8 m) |
Processor |
---|
Processor architecture | ARM Cortex-A55 |
Memory |
---|
Maximum internal memory | 32 GB |
RAM capacity | 4 GB |
RAM type | DDR3 |
Certificates |
---|
Certification | CE,Energy Star,FCC,RoHS,TUV,UL,WEEE |
Colour |
---|
Product colour | Black |
Logistics data |
---|
Country of origin | China |
