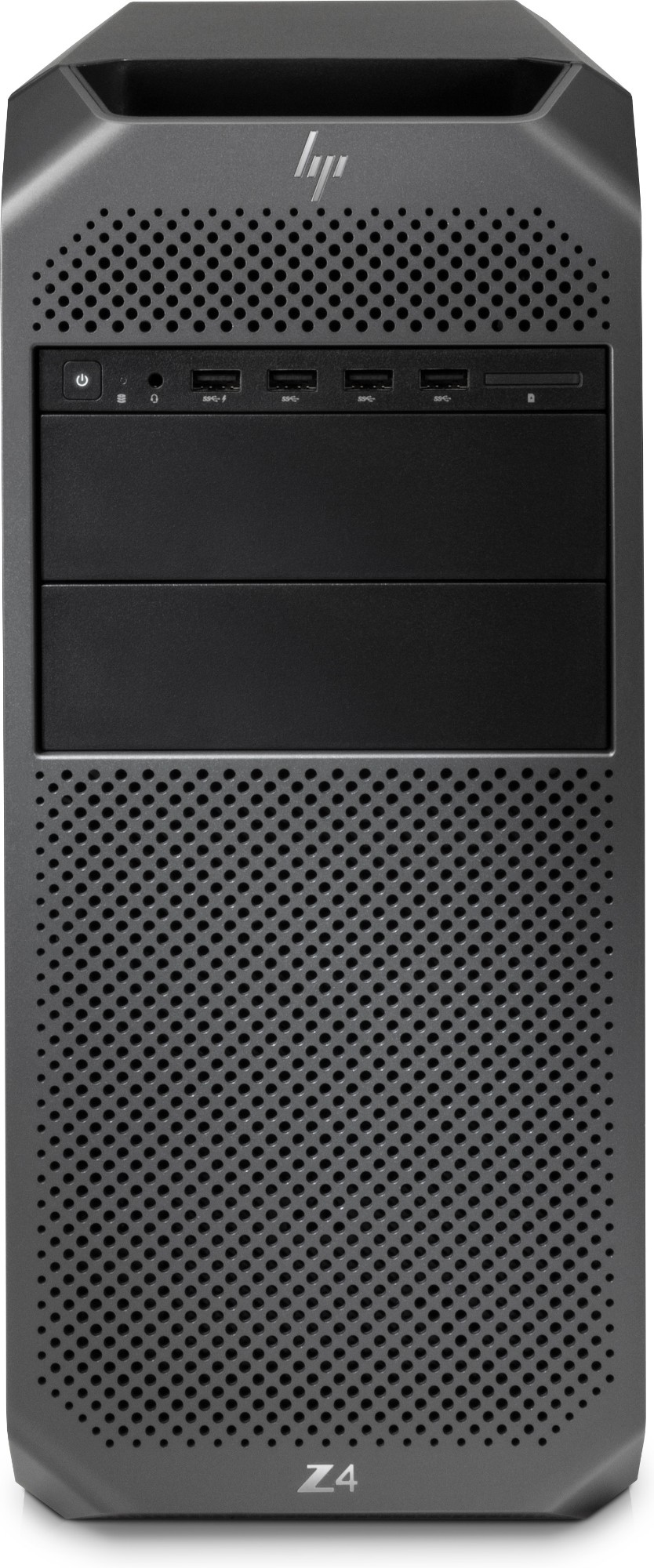

HP 2XN14UT#ABA HP Z4 G4 Intel® Xeon® W-2102 8 GB DDR4-SDRAM 1 TB HDD Windows 10 Pro for Workstations Tower Workstation Black

Availability :

Limited Availability

Mfr. Part# :

2XN14UT#ABA

CAD 1,842.50

Quantity :

Add to cart Add to cart

Get a Quote Get a Quote

PRODUCT DETAILS:

HP's most popular workstation just got better. Perfect for engineering, the Z4 delivers mainstream performance for a wide spectrum of applications. With server-grade processing and a full set of components you get everything you need, nothing more.Feature-rich functionality- The Z4 is ahead of its time with more standard features than any other single processor HP workstation. With multiple configuration options, you can choose the perfect blend of components that meet your performance requirements.All the power without the noise- Next-generation acoustic design delivers quiet performance. A high frequency processor with a multi-core count is fully capable of handling the demands of 3D CAD and rendering software, so you can visualize your idea anytime during the design process.HP's most secure workstations- Advanced security features come standard on every Z4. Rest assured your device, identity and data are safe with security software like HP Client Security Suite and HP Sure Start, the industry's first self-healing BIOS with intrusion detection.

Processor
Processor frequency	2.9 GHz
Processor family	Intel® Xeon®
Processor manufacturer	Intel
Processor model	W-2102
Processor cores	4
Stepping	U0
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Skylake
Bus type	QPI
Maximum internal memory supported by processor	512 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133,2400 MHz
Memory bandwidth supported by processor (max)	76.8 GB/s
Thermal Design Power (TDP)	120 W
Tcase	66 °C
PCI Express configurations	1x16, 1x4, 1x8
Maximum number of PCI Express lanes	48
Conflict-Free processor	Yes
Processor socket	LGA 2066 (Socket R4)
Processor cache	8.25 MB
PCI Express slots version	3.0
Processor threads	4
Number of processors installed	1
Memory
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	256 GB
Memory layout (slots x size)	1 x 8 GB
Memory slots	8x DIMM
Memory clock speed	2666 MHz
ECC	Yes
Storage
Total storage capacity	1 TB
Optical drive type	DVD-RW
Card reader integrated	No
Storage media	HDD
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
HDD speed	7200 RPM
Total HDDs capacity	1 TB
Graphics
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Not available
On-board graphics card	No
Optical drive
Optical drive type	DVD-RW
Optical drives quantity	1
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
Ports & interfaces
DVI port	No
PS/2 ports quantity	2
Ethernet LAN (RJ-45) ports	2
Line-in	Yes
Line-out	Yes
Microphone in	No
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	10
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Combo headphone/mic port	Yes
Expansion slots
PCI Express slots version	3.0
Design
Product colour	Black
Chassis type	Tower
Country of origin	China
Performance
Product type	Workstation
Motherboard chipset	Intel® C422
Audio chip	Realtek HD ALC221
Embedded options available	No
Software
Operating system installed	Windows 10 Pro for Workstations
Operating system architecture	64-bit
Processor special features
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel® Secure Key	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Flex Memory Access	No
Intel Software Guard Extensions (Intel SGX)	No
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Supported instruction sets	AVX, AVX 2.0, AVX-512, SSE4.2
Scalability	1S
Processor package size	45 x 52.5 mm
Processor code	SR3LG
Physical Address Extension (PAE)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Conflict-Free processor	Yes
Processor ARK ID	125038
Intel 64	Yes
Enhanced Intel SpeedStep Technology	Yes
Embedded options available	No
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Physical Address Extension (PAE)	46 bit
Power
Power supply	465 W
Sustainability
Sustainability certificates	EPEAT Gold, ENERGY STAR
Weight & dimensions
Width	6.65" (169 mm)
Depth	17.5" (445 mm)
Height	15.2" (386 mm)
Weight	22.5 lbs (10.2 kg)
Packaging content
Display included	No
Features
Country of origin	China
Technical details
Sustainability certificates	EPEAT Gold, ENERGY STAR
Other features
Optical drives quantity	1
Processor manufacturer	Intel
On-board graphics card	No
Country of origin	China
