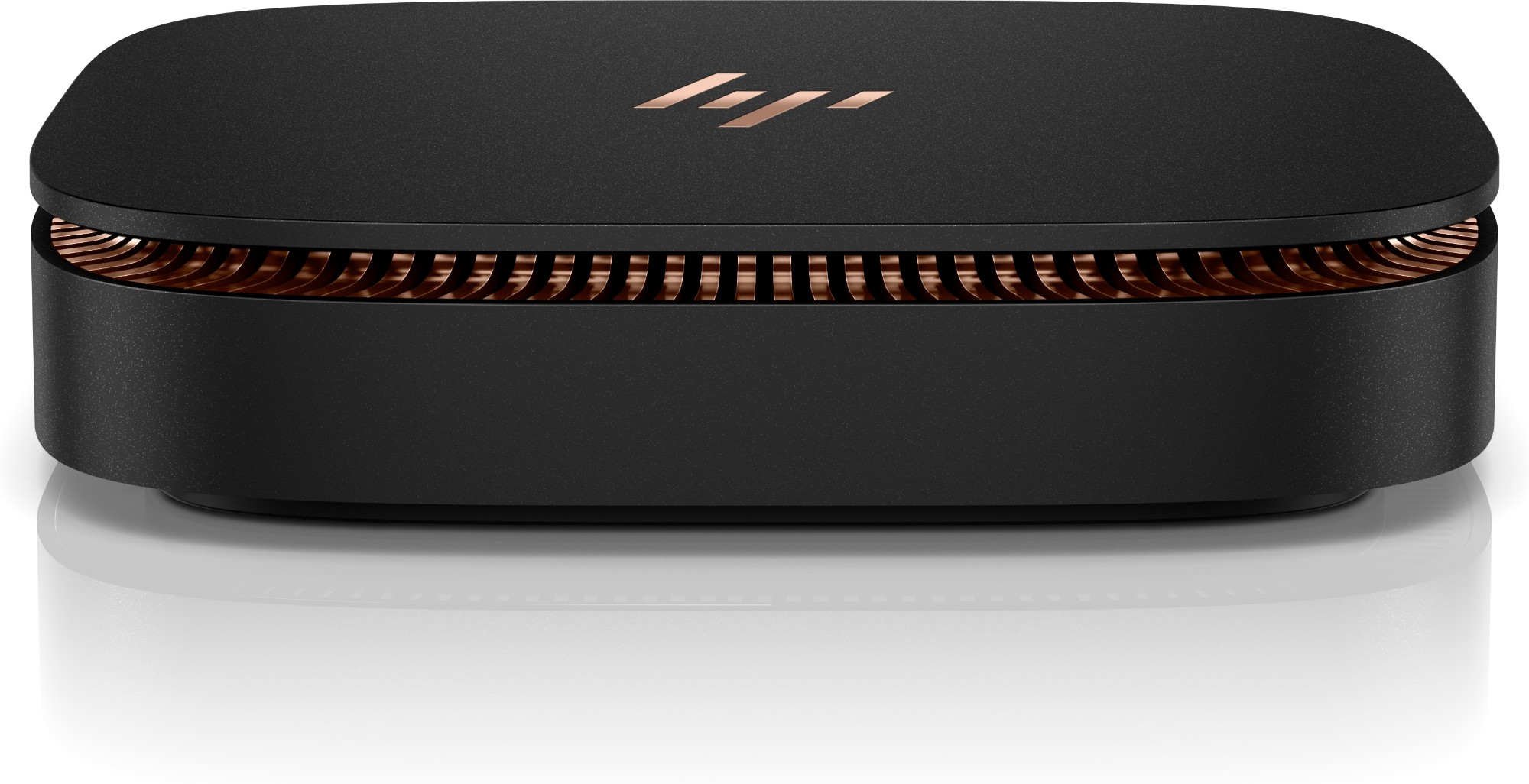

HP 2U5A6AW#ABA HP Elite Slice Intel® Core™ i7 i7-7700T 16 GB DDR4-SDRAM 128 GB SSD Windows 10 IoT Enterprise USFF Mini PC Black

Availability :

Limited Availability

Mfr. Part# :

2U5A6AW#ABA

CAD 3,014.82

Quantity :

Add to cart Add to cart

Get a Quote Get a Quote

PRODUCT DETAILS:

HP Elite Slice. Processor frequency: 2.9 GHz, Processor family: Intel® Core™ i7, Processor model: i7-7700T. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 2666 MHz. Total storage capacity: 128 GB, Storage media: SSD. On-board graphics card model: Intel® HD Graphics 630. Operating system installed: Windows 10 IoT Enterprise, Operating system architecture: 64-bit. Power supply: 90 W. Chassis type: USFF. Product type: Mini PC. Product color: Black

Processor
Processor generation	7th gen Intel® Core™ i7
Processor frequency	2.9 GHz
Processor family	Intel® Core™ i7
Processor manufacturer	Intel
Processor model	i7-7700T
Processor cores	4
Bus type	DMI3
Configurable TDP-down	25 W
Processor cache type	L3
Configurable TDP-down frequency	1.9 GHz
Conflict-Free processor	Yes
Processor boost frequency	3.8 GHz
Processor cache	8 MB
Processor threads	8
Memory
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x DIMM
Memory clock speed	2666 MHz
ECC	No
Memory channels	Dual-channel
Storage
Total storage capacity	128 GB
Optical drive type	No
Card reader integrated	No
Storage media	SSD
Number of SSDs installed	1
SSD capacity	128 GB
SSD interface	PCI Express, NVMe
SSD form factor	M.2
Total SSDs capacity	128 GB
NVMe	Yes
Graphics
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 630
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	4.2
WLAN controller model	Intel Dual Band Wireless-AC 8260
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
DVI port	No
HDMI ports quantity	1
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Line-out	No
Microphone in	No
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Combo headphone/mic port	Yes
Design
Product colour	Black
Chassis type	USFF
Placement supported	Horizontal
Intel segment tagging	Home office, Small Business
Country of origin	China
Performance
Product type	Mini PC
Motherboard chipset	Intel® Q170
Audio chip	Conexant CX7501
Market positioning	Premium
Embedded options available	Yes
Harmonized System (HS) code	84715000
Software
Operating system installed	Windows 10 IoT Enterprise
Operating system architecture	64-bit
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Clear Video Technology	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Enhanced Halt State	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Conflict-Free processor	Yes
Intel 64	Yes
Enhanced Intel SpeedStep Technology	Yes
Embedded options available	Yes
Brand-specific features
HP segment	Business
Power
Power supply	90 W
Weight & dimensions
Width	6.5" (165 mm)
Depth	6.5" (165 mm)
Height	4.41" (112 mm)
Weight	3.35 lbs (1.52 kg)
Package width	23.5" (596 mm)
Package depth	10.7" (273 mm)
Package height	7.99" (203 mm)
Package weight	14.7 lbs (6.67 kg)
Packaging data
Package width	23.5" (596 mm)
Package depth	10.7" (273 mm)
Package height	7.99" (203 mm)
Package weight	14.7 lbs (6.67 kg)
Packaging content
Display included	No
Keyboard connectivity	Wired
Logistics data
Harmonized System (HS) code	84715000
Features
Country of origin	China
Other features
Processor manufacturer	Intel
Intel segment tagging	Home office, Small Business
On-board graphics card	Yes
Keyboard type	USB
Country of origin	China
Harmonized System (HS) code	84715000
