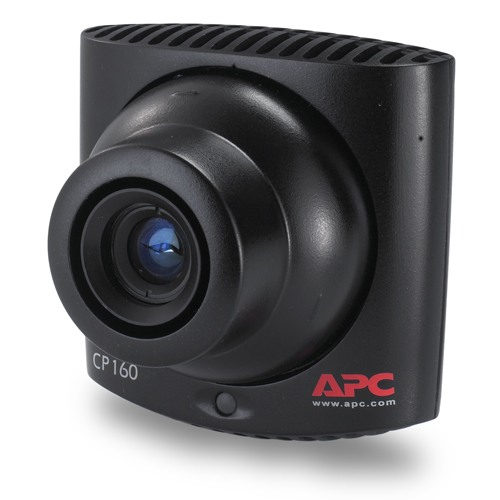

APC NBPD0160A APC NetBotz Camera Pod 160 Cube IP security camera Indoor 1280 x 1024 pixels Wall

APC
Availability :
Limited Availability
Mfr. Part# :
NBPD0160A
CAD 505.09
Quantity :

PRODUCT DETAILS:

2-Way audioSupports remote service capability through speaker and microphone inputs. Advanced Software Pack #1 required to enable functionality.Door contactEnables a NetBotz appliance to detect the act of opening a door, which triggers surveillence recording.Network equipment monitoringMonitor physical 'vital signs' of network and computer equipment via IPMI or SNMP.Full-motion video cameraCapture a visual record when used with a compatible NetBotz appliance.3rd party sensor supportEasily add 3rd party sensors for monitoring fluid, vibration, dust particles, radiation, etc. to meet specific monitoring needs.Intelligent applianceBuilt-in software allows appliance to assess severity of threats and provide notification, reducing network bandwidth.Environmental monitoringPrevent equipment failure from a full range of threatening environmental conditions.Event-driven video storageVideo storage prompted by motion or alert.ScalabilityThe extensible platform can be scaled to meet changing business needs and requirements on demand. The management of additional devices is allowed as needed, while powerful facility and service management applications help to expand the product's management capabilities.Handheld device supportSends PDA-formatted alerts including pictures and link to live video to your Palm/Blackberry/PocketPC.Customized escalation policiesAlerts are managed according to your escalation policies and received in multiple formats.Fault notificationReal-time event notification minimizes response times to critical physical infrastructure situations. Enables IT Administrators to reduce mean time to repair, improve efficiency, and maximize uptime.

Performance
TypeIP security camera
Connectivity technologyWired
Placement supportedIndoor
CertificationCE, FCC 15 A, ICES-003 A, VCCI A, EN 55022 A, EN 55024, AS/NZS CISPR 22
Design
Form factorCube
Product colourBlack
Mounting typeWall
LED indicatorsActivity
Camera
Lens viewing angle, horizontal64°
Lens viewing angle, vertical53°
Video
Maximum resolution1280 x 1024 pixels
Supported graphics resolutions640 x 480 (VGA), 1280 x 1024 (SXGA)
Frame rate30 fps
Audio
Audio system2-way
Network
BluetoothNo
Ethernet LANYes
Wi-FiNo
Storage
Built-in HDDNo
Ports & interfaces
USB portYes
Microphone inYes
InterfaceRJ-45
Headphone outputs1
Connectivity technologyWired
Power
Power source typeDC
Power over Ethernet (PoE)No
Power consumption (max)2 W
DC output voltage5
Certificates
CertificationCE, FCC 15 A, ICES-003 A, VCCI A, EN 55022 A, EN 55024, AS/NZS CISPR 22
Operational conditions
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-15 - 65 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%
Weight & dimensions
Width3.94" (100 mm)
Depth3.07" (78 mm)
Height4.02" (102 mm)
Weight7.05 oz (200 g)
Package width11.3" (286 mm)
Package depth6.5" (165 mm)
Package height10.2" (260 mm)
Package weight3.09 lbs (1.4 kg)
Packaging content
Number of cameras1
Technical details
Lens mount interfaceCS mount
Logistics data
Harmonized System (HS) code85258900
