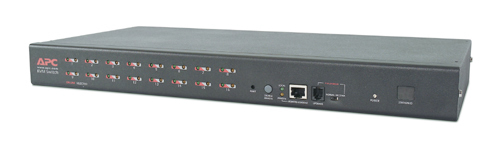

APC AP5202 APC 16 Port Multi-Platform Analog KVM KVM switch Rack mounting Black

APC

Availability :

Limited Availability

Mfr. Part# :

AP5202

CAD 1,067.19

Quantity :

PRODUCT DETAILS:

Manage multiple servers with just one keyboard, monitor and mouse.APC’s 8- and 16-port RackMount KVM switches fit on the desktop or mount in 1U of rack space. Daisy-chain compatible units and manage up to 512 servers through one keyboard, monitor, and mouse. The KVM Switches support multiple platforms (PS/2, USB, or SUN), use slimmer cables for better cable management, are firmware upgradeable, and allow servers to be connected and disconnected without powering down the KVM. LEDs on the front of all units display which channels are active. Use hotkeys or the on-screen display to switch easily among connected servers. Reduce hardware costs, save space, reduce heat generation, and lower power consumption using APC RackMount KVMs. Click here to compare RackMount KVM Switches and select the correct cables for your application. Includes: Configuration cable, Country-specific detachable power cord, Documentation CD, KVM cables not included, Rack Mounting brackets, User Manual.- Cascading capabilities - On-Screen display (OSD) capability

Video
Maximum resolution	1920 x 1440 pixels
Ports & interfaces
Keyboard port type	PS/2
Mouse port type	PS/2
Video port type	VGA
Performance
Maximum resolution	1920 x 1440 pixels
Design
Product colour	Black
Rack mounting	Yes
Certification	AS/NZS 3548 (C-Tick) Class A,CE,FCC Part 15 Class A,ICES-003,UL 60950,VCCI
Rack capacity	1U
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 85%
Weight & dimensions
Weight	10 lbs (4.55 kg)
Package weight	11 lbs (5 kg)
Packaging data
Package dimensions (WxDxH)	20 x 13 x 5" (508 x 330 x 127 mm)
Package weight	11 lbs (5 kg)
Certificates
Certification	AS/NZS 3548 (C-Tick) Class A,CE,FCC Part 15 Class A,ICES-003,UL 60950,VCCI
Logistics data
Harmonized System (HS) code	85176200
Other features
Connectivity technology	Wired
Ports quantity	16
Package dimensions (WxDxH)	20 x 13 x 5" (508 x 330 x 127 mm)
Dimensions (WxDxH)	17 x 8.27 x 1.73" (432 x 210 x 44 mm)
I/O ports	1 x mini-DIN (PS/2) F 1 x mini-DIN (PS/2) F 1 x 15-pin D-Sub (HD-15) F VGA/SVGA
