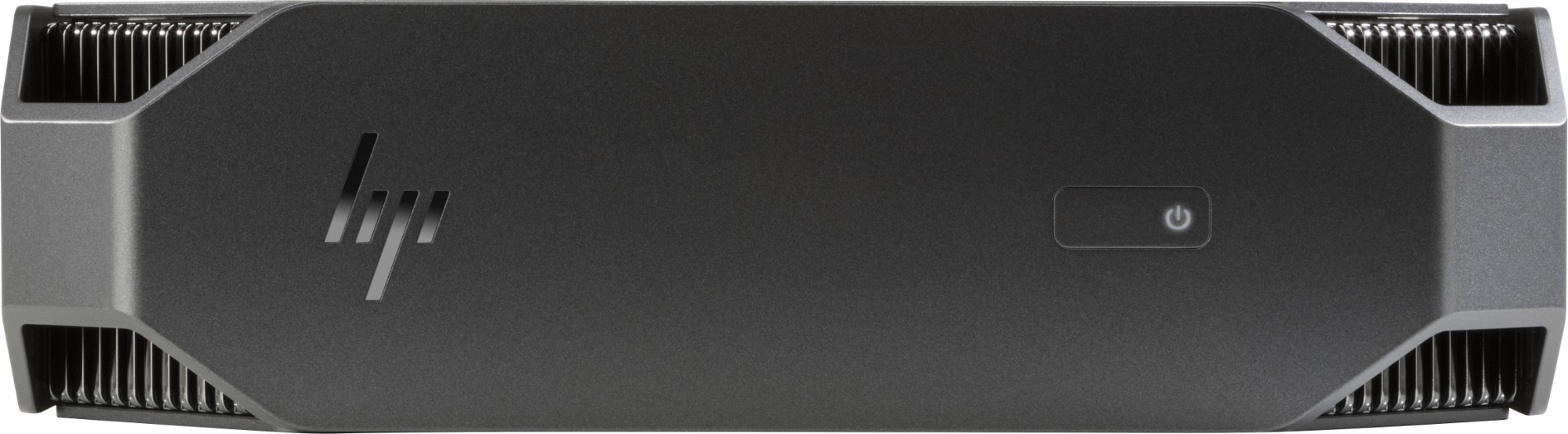

HP Z2 G4 Intel® Core™ i7 i7-9700 8 GB DDR4-SDRAM 256 GB SSD NVIDIA® Quadro® P600 Windows 10 Pro for Workstations Mini PC Workstation Black

Name: HP Z2 G4 Intel® Core™ i7 i7-9700 8 GB DDR4-SDRAM 256 GB SSD NVIDIA® Quadro® P600 Windows 10 Pro for Workstations Mini PC Workstation Black
Brand: HP
Price: 1544.04 CAD
Availability: SourcedOnDemand

Availability :

Sourced on Demand

Mfr. Part# :

8JF48UT#ABA

CAD 1,544.04

Quantity :

Add to cart Add to cart

Get a Quote Get a Quote

PRODUCT DETAILS:

HP Z2 G4. Processor frequency: 3 GHz, Processor family: Intel® Core™ i7, Processor model: i7-9700. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 2666 MHz. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics 630, Discrete graphics card model: NVIDIA® Quadro® P600. Operating system installed: Windows 10 Pro for Workstations, Operating system architecture: 64-bit. Power supply: 200 W. Chassis type: Mini PC. Product type: Workstation

Processor
Processor generation	9th gen Intel® Core™ i7
Processor frequency	3 GHz
Processor family	Intel Core i7
Processor manufacturer	Intel
Processor model	i7-9700
Processor cores	8
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Coffee Lake
Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Memory bandwidth supported by processor (max)	41.6 GB/s
Tjunction	100 °C
Thermal Design Power (TDP)	65 W
PCI Express configurations	1x16,2x8,1x8+2x4
Maximum number of PCI Express lanes	16
Processor cache type	Smart Cache
Processor boost frequency	4.7 GHz
Processor socket	LGA 1151 (Socket H4)
Processor cache	12 MB
PCI Express slots version	3.0
System bus rate	8 GT/s
Processor threads	8
Number of processors installed	1
Memory
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	1 x 8 GB
Memory slots	2x SO-DIMM
Memory clock speed	2666 MHz
ECC	Yes
Storage
Total storage capacity	256 GB
Optical drive type	No
Card reader integrated	No
Storage media	SSD
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	PCI Express
Total SSDs capacity	256 GB
Graphics
Discrete graphics adapter	Yes
Discrete graphics adapter model	NVIDIA® Quadro® P600
Discrete graphics memory type	GDDR5
On-board graphics adapter model	Intel® UHD Graphics 630
Discrete graphics adapter memory	4 GB
On-board graphics adapter dynamic frequency (max)	1200 MHz
On-board graphics adapter base frequency	350 MHz
Maximum on-board graphics adapter memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics adapter OpenGL version	4.5
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	0x3E98
On-board graphics adapter family	Intel® UHD Graphics
On-board graphics adapter	Yes
Discrete GPU manufacturer	NVIDIA
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	5.0
WLAN controller model	Intel Dual Band Wireless-AC 9560
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Antenna type	2x2
Ports & interfaces
DVI port	No
DisplayPorts quantity	2
Microphone in	No
Headphone outputs	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Combo headphone/mic port	Yes
Expansion slots
PCI Express slots version	3.0
Design
Product colour	Black
Chassis type	mini PC
Placement supported	Horizontal
Country of origin	China
Performance
Product type	Workstation
Motherboard chipset	Intel C246
Audio chip	Conexant CX20632-31Z
Market positioning	Business
Embedded options available	No
Software
Operating system installed	Windows 10 Pro for Workstations
Operating system architecture	64-bit
Processor special features
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel® Secure Key	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Thermal solution specification	PCG 2015C
Supported instruction sets	SSE4.1,SSE4.2,AVX 2.0
Scalability	1S
Processor package size	37.5 x 37.5 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	191792
Intel 64	Yes
Enhanced Intel SpeedStep Technology	Yes
Embedded options available	No
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Brand-specific features
HP segment	Business
Power
Power supply	200 W
Weight & dimensions
Width	8.5" (216 mm)
Depth	8.5" (216 mm)
Height	2.28" (58 mm)
Weight	4.5 lbs (2.04 kg)
Features
Country of origin	China
Other features
Processor manufacturer	Intel
On-board graphics adapter	Yes
Graphics adapter interface	PCIe x16
Country of origin	China
