| Projector |
|---|
| Projector brightness | 4500 ANSI lumens |
| Projection technology | DMD |
| Projector native resolution | WUXGA (1920x1200) |
| Screen size compatibility | 70 - 200" |
| Projection distance | 2.36 - 28.3" (0.0600 - 0.72 m) |
| Contrast ratio (typical) | 3000000:1 |
| Number of colours | 1.073 billion colors |
| Vertical scan range | 23 - 120 Hz |
| Horizontal scan range | 15 - 102 kHz |
| Matrix size | 0.48" |
| Keystone correction, vertical | -5 - 5° |
| Keystone correction, horizontal | -5 - 5° |
| Light source |
|---|
| Lamps quantity | 2 lamp(s) |
| Lamp power | 67 W |
| Light source type | Laser |
| Service life of light source | 20000 h |
| Lens system |
|---|
| Focus | Manual |
| Fixed focal length | 0.0961" (2.44 mm) |
| Aperture range (F-F) | 2 - 2 |
| Throw ratio | 0.252 |
| Offset | 140% |
| Zoom type | Fixed |
| Video |
|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Supported graphics resolutions | 640 x 480 (VGA), 3840 x 2160 |
| Ports & interfaces |
|---|
| HDBaseT port | Yes |
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| USB 2.0 ports quantity | 1 |
| Composite video in | 1 |
| Audio (L/R) in | 1 |
| S-Video inputs quantity | 1 |
| Serial interface type | RS-232 |
| PC Audio out | Yes |
| PC Audio in | Yes |
| HDMI version | 2.0 |
| DVI port | No |
| Component video (YPbPr/YCbCr) in | 1 |
| AC (power) in | Yes |
| Network |
|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Storage |
|---|
| Card reader integrated | No |
| Features |
|---|
| Interactive | No |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Noise level | 34 dB |
| Noise level (economic mode) | 29 dB |
| Number of OSD languages | 23 |
| Multimedia |
|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Design |
|---|
| Market positioning | Presentation |
| Product colour | White |

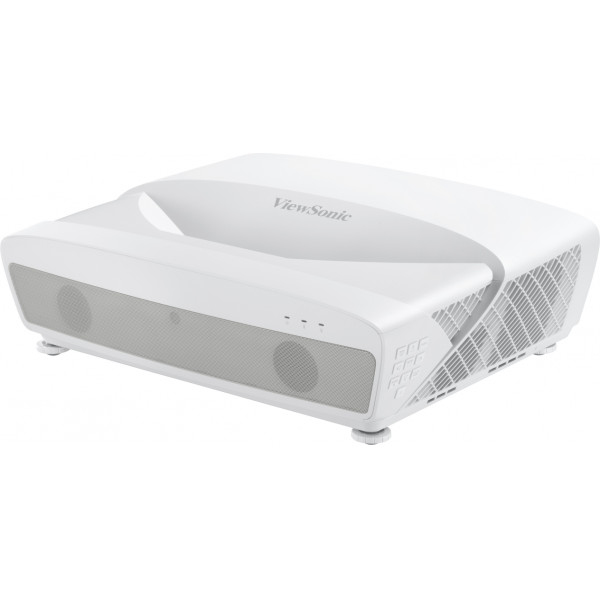

| Product type | Ultra short throw projector |
| Placement | Desktop, Ceiling |
| Display |
|---|
| Built-in display | No |
| Power |
|---|
| Power source | AC |
| Power consumption (typical) | 504 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Supplier features |
|---|
| Harmonized System (HS) code | 85286200 |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions |
|---|
| Width | 19.4" (492 mm) |
| Depth | 15.2" (387 mm) |
| Height | 6.18" (157 mm) |
| Weight | 21.8 lbs (9.9 kg) |
| Package width | 25.4" (645 mm) |
| Package depth | 21.3" (540 mm) |
| Package height | 11.6" (295 mm) |
| Package weight | 28.9 lbs (13.1 kg) |
| Packaging content |
|---|
| Remote control included | Yes |
| Manual | Yes |
| Cables included | AC, VGA |
| Logistics data |
|---|
| Harmonized System (HS) code | 85286200 |
