AT-FS750/28PS-10 - Allied Telesis

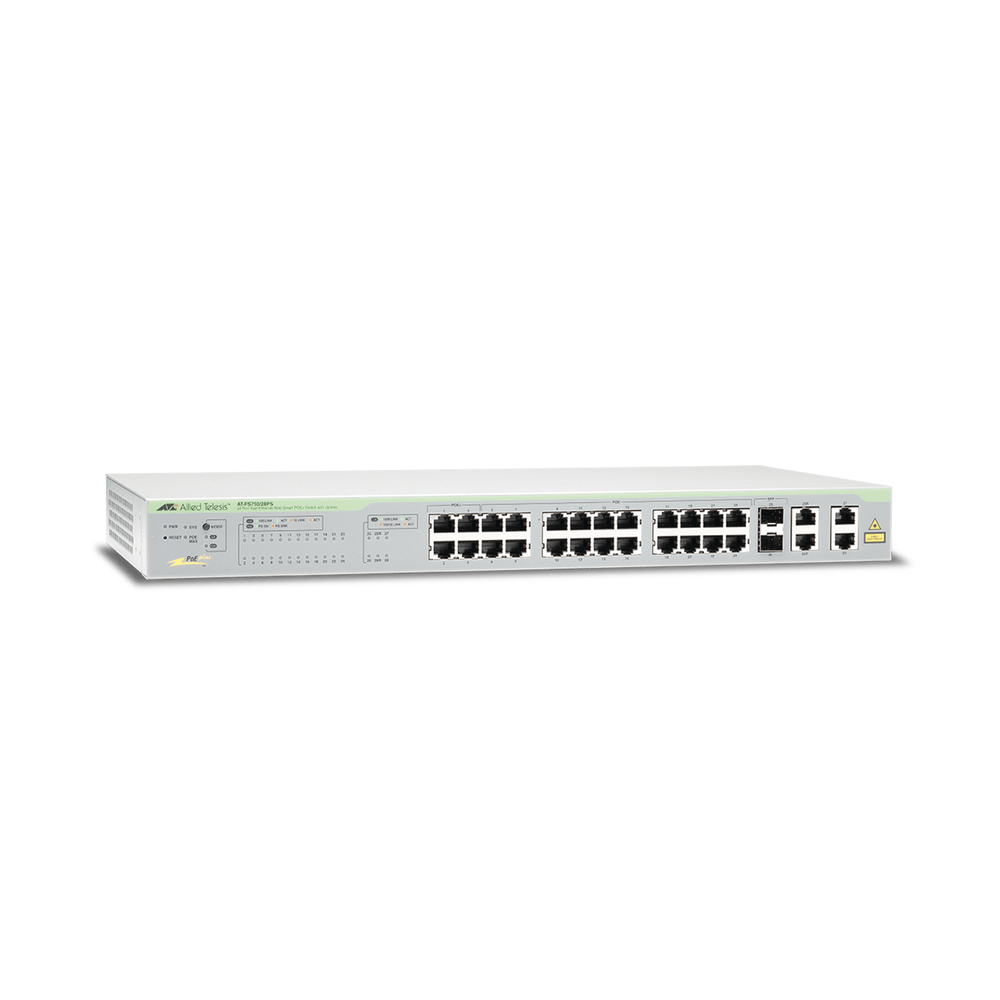

Allied Telesis AT-FS750/28PS-10 network switch Managed Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Gray

Allied Telesis
Availability :
Limited Availability
Mfr. Part# :
AT-FS750/28PS-10
CAD 767.46
Quantity :
Add to cart Add to cart
Get a Quote Get a Quote

PRODUCT DETAILS:

Allied Telesis AT-FS750/28PS-10. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 28. MAC address table: 8000 entries, Switching capacity: 12.8 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Wall mountable, Rack mounting, Form factor: 1U

Management features
Multicast supportYes
Switch typeManaged
Web-based managementYes
System event logYes
Quality of Service (QoS) supportYes
MIB supportRFC 1213 MIB-II, RFC 1643 Ethernet MIB, RFC 1493 Bridge MIB, RFC 2131 DHCP client, Private Enterprise MIB
Network
IGMP snoopingYes
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of VLANs256
Head-of-line (HOL) blockingYes
VLAN supportYes
Spanning tree protocolYes
Rate limitingYes
Port mirroringYes
Link aggregationYes
Flow control supportYes
Broadcast storm controlYes
10G supportNo
Virtual LAN featuresPort-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID)
Virtual LAN features
Number of VLANs256
VLAN supportYes
Virtual LAN featuresPort-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID)
Data transmission
Number of VLANs256
Number of multicast groups filtered256
MAC address table8000 entries
Switching capacity12.8 Gbit/s
Jumbo frames10000
Jumbo frames supportYes
Packet buffer memory4.1 MB
Forwarding rate9.5 Mpps
Performance
Packet buffer memory4.1 MB
Internal memory128 MB
Flash memory16 MB
Firmware upgradeableYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity28
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Combo SFP ports quantity2
Fast Ethernet (copper) ports quantity24
Gigabit Ethernet (copper) ports quantity2
Security
AuthenticationMAC-based authentication, Port-based authentication
Access Control List (ACL) rules200
Security algorithms802.1x RADIUS, SNMPv3
MAC address filteringYes
IGMP snoopingYes
Access Control List (ACL)Yes
Password protectionYes
Authentication typeRADIUS
DHCP featuresDHCP client
Multicast features
Number of multicast groups filtered256
Multicast supportYes
Design
Rack mountingYes
Product colourGray
Form factor1U
Wall mountableYes
LED indicatorsYes
CertificationUL60950-1 2nd edition (UL) FCC/EN55022/CISPR 22 Class A VCCI Class A C-Tick EN60950 (TUV) EN55024 CE Mark CSA / cUL
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)241 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity24
Power over Ethernet plus (PoE+) ports quantity4
Total Power over Ethernet (PoE) budget193 W
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%
Weight & dimensions
Width17.3" (440 mm)
Depth8.27" (210 mm)
Height1.73" (44 mm)
Weight11 lbs (5 kg)
Packaging data
ManualYes
Packaging content
ManualYes
