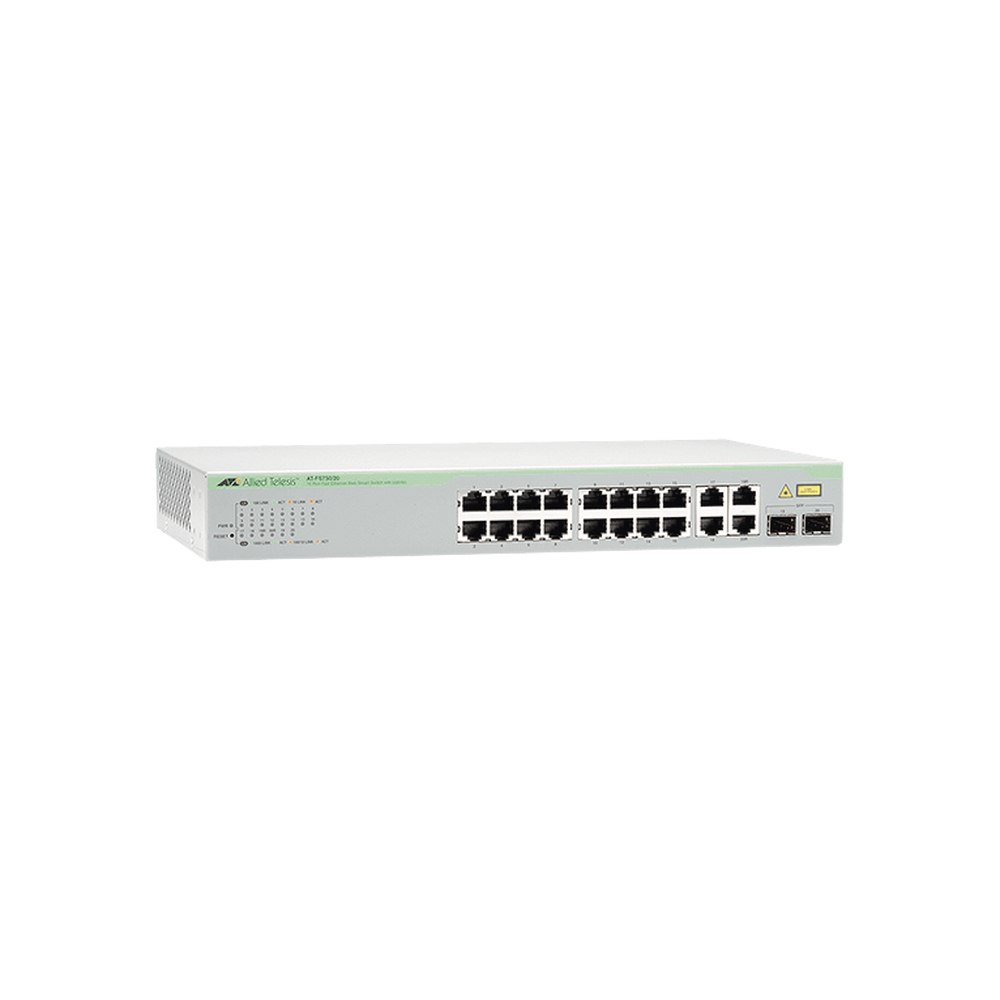

Allied Telesis AT-FS750/20-10 network switch Managed Fast Ethernet (10/100) 1U Gray

Allied Telesis
Availability :
Sourced on Demand
Mfr. Part# :
AT-FS750/20-10
CAD 273.44
Quantity :
Add to cart Add to cart
Get a Quote Get a Quote

PRODUCT DETAILS:

Allied Telesis AT-FS750/20-10. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 20. MAC address table: 8000 entries, Switching capacity: 11.2 Gbit/s. Networking standards: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1U

Management features
Multicast supportYes
Switch typeManaged
Web-based managementYes
System event logYes
Quality of Service (QoS) supportYes
MIB supportRFC 1213 MIB-II, RFC 1643 Ethernet MIB, RFC 1493 Bridge MIB, RFC 2131 DHCP client, Private Enterprise MIB
Network
IGMP snoopingYes
Networking standardsIEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Head-of-line (HOL) blockingYes
Spanning tree protocolYes
Rate limitingYes
Port mirroringYes
Link aggregationYes
Flow control supportYes
Broadcast storm controlYes
10G supportNo
Virtual LAN featuresPort-based VLAN, Tagged VLAN
Virtual LAN features
Virtual LAN featuresPort-based VLAN, Tagged VLAN
Data transmission
Number of multicast groups filtered256
MAC address table8000 entries
Switching capacity11.2 Gbit/s
Packet forwarding rate (100 Mbps)148800 pps
Packet forwarding rate (10 Mbps)14880 pps
Packet forwarding rate (1 Gbps)1488000 pps
Number of queues4
Jumbo frames supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity20
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Combo SFP ports quantity2
Fast Ethernet (copper) ports quantity16
Gigabit Ethernet (copper) ports quantity2
Security
AuthenticationMAC-based authentication
MAC address filteringYes
IGMP snoopingYes
Access Control List (ACL)Yes
DHCP featuresDHCP client
Multicast features
Number of multicast groups filtered256
Multicast supportYes
Protocols
Management protocolsFTP, HTTP, SNMPv1/v2c/v3, SNTP
Design
Rack mountingYes
Product colourGray
Form factor1U
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)7.6 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Operating temperature (T-T)0 - 40 °C
Weight & dimensions
Width13" (330 mm)
Depth7.09" (180 mm)
Height1.73" (44 mm)
Weight4.85 lbs (2.2 kg)
Packaging data
Cables includedAC
Packaging content
Cables includedAC
