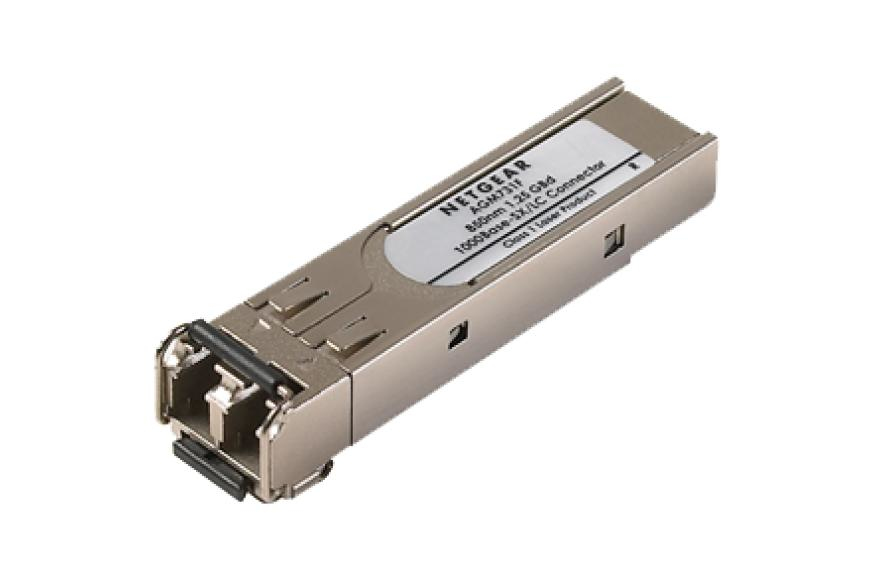

Netgear AGM731F NETGEAR AGM731F network transceiver module Fiber optic 1250 Mbit/s SFP 850 nm

Netgear

Availability :

Limited Availability

Mfr. Part# :

AGM731F

CAD 176.60

Quantity :

PRODUCT DETAILS:

The ProSAFE GBIC Module is a LC duplex connector and meets SFP GBIC standard for use with any SFP GBIC compliant slot.

Network
SFP transceiver type	Fiber optic
Interface type	SFP
Maximum data transfer rate	1250 Mbit/s
Fiber optic connector	LC
Networking standards	IEEE 802.3z
Performance
Product colour	Silver
Housing material	Metal
Mean time between failures (MTBF)	87658 h
SFP transceiver type	Fiber optic
Interface type	SFP
Maximum data transfer rate	1250 Mbit/s
Ethernet LAN	Yes
Fiber optic connector	LC
Networking standards	IEEE 802.3z
Maximum transfer distance	39370.1" (1000 m)
Wavelength	850 nm
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
Duplex system	Full
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	SX
Fiber ethernet cabling technology	1000BASE
Harmonized System (HS) code	85369010
Features
Product colour	Silver
Housing material	Metal
Safety	UL 1950, CSA 22.2 No.60 950
Mean time between failures (MTBF)	87658 h
Power
Input voltage	3.3 V
Power consumption (typical)	0.5 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Technical details
Ethernet LAN	Yes
Compliance certificates	CE, RoHS
Weight & dimensions
Width	2.24" (57 mm)
Depth	0.541" (13.8 mm)
Height	0.335" (8.5 mm)
Certificates
Safety	UL 1950, CSA 22.2 No.60 950
Logistics data
Harmonized System (HS) code	85369010
Quantity per pack	1 pc(s)
