Showing 190–200 of 586 results

MTP / MPO Push-Pull Connectors for Quick Fiber Optic connectionsPush/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand24 times the density of SC style connectorsNo need for long fan-out cables or individual long duplex cable runsHigh-density design cuts down on installation costs50/125 OM3 Rated Multimode Fiber, 850nmPlenum rated jacketUnique cable ID label for Quality Control and TraceabilityEach cable 100% tested for low insertion loss and back reflectionTest data supplied with each cableCustom lengths available

Multimode duplex fiber optic SC/ST Ethernet cable is manufactured from 62.5/125 zipcord fiber. The cable has ST to SC connectors, a PVC jacket and is FDDI and OFNR rated. Duplex multimode fiber is most commonly used in LAN applications.

This singlemode duplex fiber optic SC/ST Ethernet cable is manufactured from 9/125 zipcord fiber. The cable has ST connectors on one end, SC on the other, a PVC jacket, and is FDDI and OFNR rated. Duplex singlemode fiber is most commonly used in LAN applications.

Manufactured from 62.5/125 duplex (zipcord) fiberPVC jacketLength: 25-meter (80ft) Connectors: 2 SC/LC connectors on each endInsertion loss testing performed on every connector (0.2db typical) and provided with cableBeveled edge on ends of glass makes insertion of plug a breezeFiber made from glass (not a polymer)

Manufactured from 62.5/125 duplex (zipcord) fiberPVC jacketLength: 8-meters (25ft) Connectors: MTRJ to 2 STInsertion loss testing performed on every connector (0.2db typical) and provided with cableBeveled edge on ends of glass makes insertion of plug a breezeFiber made from glass (not a polymer)Color coded shrouds identify transmit and receiveFiber optic distributed data interface (FDDI) ratedOFNR (riser rated)

Tripp Lite N304-06M. Cable length: 236.2" (6 m), Cable type: OFNR, Connector 1: 2x SC, Connector 2: 2x ST, Core diameter: 62.5 µm

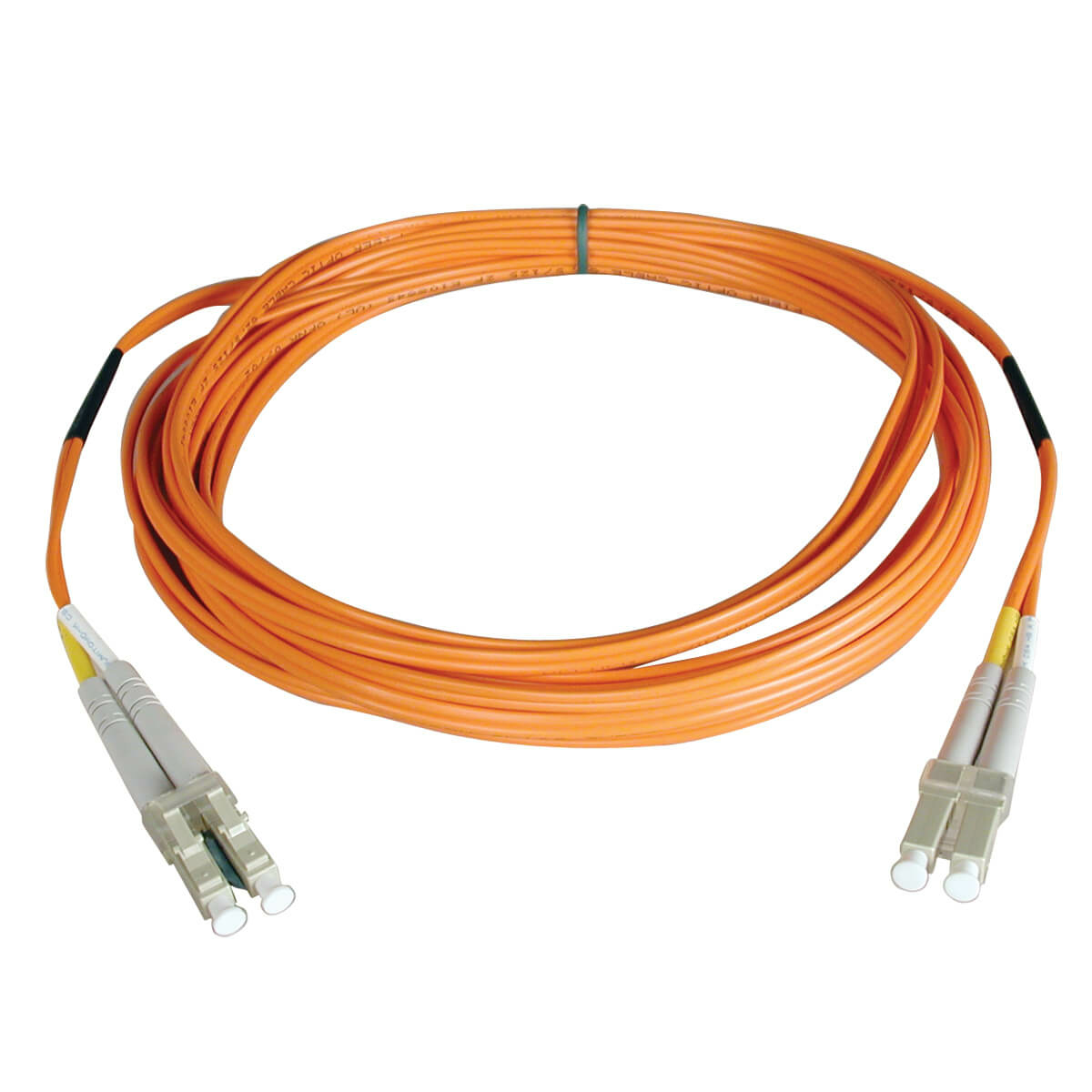

This multimode duplex Fibre Channel optic LC/LC Ethernet cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a plenum-rated jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. Plenum rated cable used where local fire code calls for fireproof cable. The cable provides higher bandwidth optimized for Gigabit and 10 Gbps networks as well. Also available in 1, 2, 3, 5, 10, 15, 20, 25 and 50 meter lengths. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables, search "N516-", and for SC-SC, search "N506-".

Constructed with 50/125 micron cableLength - 5MUse on fiber and fibre channel installationsSC male to SC male connectorsHigher bandwidth optimized for gigabit and 10Gbps networksBackward compatible with 62.5 micron fiberBuilt-in headroom for future applicationsNumber of fibers: 2Fiber type: all glass graded indexCore diameter: two 50+/-3 micronsCLAD diameter: 125+/-2 micronsPrimary coating diameter: 245+/-15 micronsPrimary coating material: acrylateSecondary coating diameter: 900+/-50 micronsSecondary coating material: PVCAttenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximumBandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimumNumeric Aperture: .275 nominalProof Test Level: 100,000 PSIInsertion loss testing performed on every connector (0.2db typical) and provided with cableBeveled edge on ends of glass makes insertion of plug a breeze

Manufactured from 62.5/125 duplex (zipcord) fiberPVC jacketLength: 4 Meter ( 13ft ) Connectors: 2 SC connectors on each endInsertion loss testing performed on every connector (0.2db typical) and provided with cableBeveled edge on ends of glass makes insertion of plug a breezeFiber made from glass (not a polymer)Fiber optic distributed data interface (FDDI) ratedOFNR (riser rated)

The 61-meter (200-foot) N858-61M-3X8-MG MTP/MPO Multimode Base-8 Trunk Cable supports 40/100 Gb Ethernet speeds and is designed for high-density connections between network equipment in telecommunication rooms and data centers.With three female MTP/MPO connectors on each end, this OM4-rated multimode fiber optic cable is recommended for high-density fiber patching between data center MDFs (main distribution frames) and IDFs (intermediate distribution frames). It’s colored magenta for instant identification as an OM4 cable. Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand.The 8-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up rack space for other cables. Optimized for QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 networks, this cable is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards. The 5.6-millimeter ruggedized plenum-rated jacket and bend-insensitive fiber are perfect for connecting high-speed network components in ceilings, walls and ducts.
